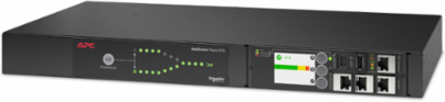

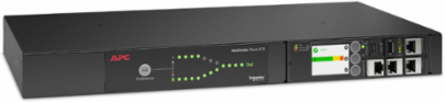

APC AP4423A NetShelter Rack Automatic Transfer Switch 1U 16A 230V 2 C20 IN, 8 C13, 1 C19 OUT
- MPN: AP4423A
- UPC: 731304432449
- PPN: APC-AP4423A
CAD
$2261.19
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4423A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4423A is single phase 1U Rack ATS with 16A rated current, 230V rated voltage and 3700VA load capacity. It comes with 2 IEC C20 inlet and 8 IEC C13, 1 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Features
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
- Seamless switching with transfer time 10ms
- Supports APC Wi-fi USB device for cableless installation & setup
- Gigabit Ethernet support for faster Communication
- Remote management via Web UI, CLI, SNMP or EcoStruxure expert
- APC NMC3 integrated for enhanced cyber security
Documentation & Downloads
Specifications
Additional
| Input Voltage | 230 V AC 1 phase |
|---|---|
| Load Capacity | 3700 VA |
| Line Rated Current | 16 A |
| Rack Height | 1U |
| Width | 17.01 in (43.2 cm) |
| Weight | 8.25 lb (3.74 kg) |
| Number of Power Outlets | 8 IEC 60320 C13 10A, 1 IEC 60320 C19 16A |
| Mounting Mode | Rack-mounted |
| Material | Lead Free, Mercury Free, Toxic Heavy Metal Free |
| Approvals | cUL Listed, CE, UL Listed |
| Operating Temperature | -5 to 45 °C (23 to 113 °F) |
| Operating Humidity | 5-95% |
| Operating Altitude | 0-10000 ft |
| California Proposition 65 Compliance | Warning: contains Diisononyl Phthalate (DINP) |
| WEEE Compliance | EU waste disposal compliant |
| Warranty | 24 months |
| Output Voltage | 230 V AC 1 phase |
|---|---|
| Input Frequency | 50/60 Hz |
| Max Line Current | 20 A |
| Height | 1.73 in (4.4 cm) |
| Depth | 9.29 in (23.6 cm) |
| Input Connection Type | IEC 60320 C20 16A 2P+E |
| Mounting Location | Front |
| Mounting Position | Front, Horizontal |
| RoHS Compliance | Compliant |
| Standards | EN 55022 Class A, FCC Part 15 Class A |
| Storage Temperature | -25 to 65 °C (-13 to 149 °F) |
| Storage Humidity | 5-95% |
| Storage Altitude | 0-50000 ft (0-15240 m) |
| Customs Number | 8537109160 |
| REACH | Contains Substances of Very High Concern above threshold |
