APC

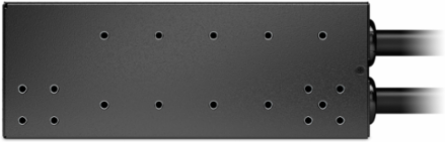

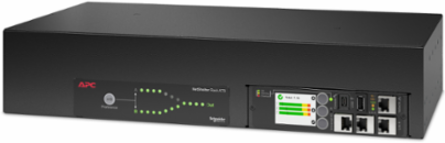

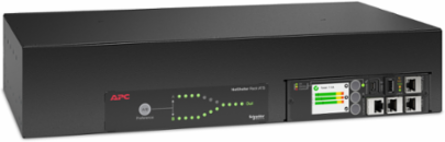

APC AP4432A Automatic Transfer Switch, 2U, 30A, 200/208V, NEMA L6-30P, 14.51 lb

  • MPN: AP4432A
  • UPC: 731304432487
  • PPN: APC-AP4432A

CAD

$2902.99

/ EA

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4432A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4432A is single phase 2U Rack ATS with 30A rated current, 200V/208V rated voltage and 4992VA load capacity. For North America region, the Regulatory Derated Input Current is 24A. It comes with inbuilt circuit breaker protection, 2 NEMA L6-30P inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Features

  • Minimized downtime disruption with Field-replaceable NMC
  • Monitor temperature and humidity efficiently
  • Dual input power cords to enhance uptime for critcal loads
  • Connect and manage up to 32 Rack ATSs from one IP address
  • Seamless switching with transfer time 10ms
  • Supports APC Wi-fi USB device for cableless installation & setup
  • Gigabit Ethernet support for faster Communication
  • Remote management via Web UI, CLI, SNMP or EcoStruxure expert
  • APC NMC3 integrated for enhanced cyber security

Documentation & Downloads

Specifications

Additional

Voltage200 V AC 1 phase, 208 V
Load Capacity4992 VA
Rack Units2U
Width17.01 in (43.2 cm)
Weight14.51 lb (6.58 kg)
Cord Length8 ft (2.44 m)
Product OrientationNo preference
RoHSCompliant
WEEE ComplianceEU waste collection required
Customs Number8537109160
Amperage30 A
Input Frequency50/60 Hz
Height3.46 in (8.8 cm)
Depth9.29 in (23.6 cm)
Input Connection TypeNEMA L6-30P 24A 2P+E
Mounting PositionFront, Rear, Horizontal
MaterialLead Free, Mercury Free
ApprovalsPSE, TDCV-C, TDCV-NURTL
California Proposition 65Contains Diisononyl phthalate (DINP) - Prop 65 Warning
Automatic Transfer Switch, 2U, 30A, 200/208V, NEMA L6-30P, 14.51 lb
