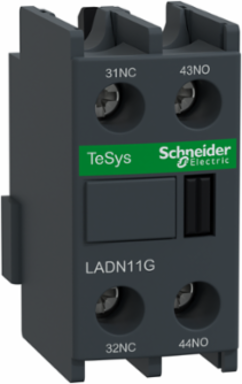

Schneider Electric LADN11G TeSys Deca Auxiliary Contact Block, 1NO+1NC, 10A, 690V AC
- MPN: LADN11G
- PPN: SCH-LADN11G
CAD
$66.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys D instantaneous auxiliary contact block, for 4-pole contactors LC1D, LC1DT (<= 80A AC-1). It provides 1NO+1NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by screw clamp terminals, with terminal referencing conforming to EN 50012. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Product Certifications
- CB || UL || CSA || CCC || EAC || UKCA
- Standards
- EN/IEC 60947-5-1 || GB/T 14048.5 || EN 50012
- Range Compatibility
- TeSys D LC1D09...D80 || TeSys D LC1DT20...DT40 || TeSys D LC1DT60A...DT80A || TeSys F LC1F || TeSys F CR1F || TeSys Deca LC1D09...D80 || TeSys Deca LC1DT20...DT40 || TeSys Deca LC1DT60A...DT80A
- Product Name
- TeSys Deca
- Mounting Location
- front
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-5-1 || 600 V UL || 600 V CSA
- Auxiliary Contacts Operation
- instantaneous
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C)
[Ue] Rated Operational Voltage690 V AC 25...400 Hz
Product Or Component Typeauxiliary contact block
RangeTeSys || TeSys Deca
Pole Contact Composition1 NO + 1 NC
[Ie] Rated Operational Current6 A at 120 V AC-15 || 1.04 A at 690 V AC-15 || 0.55 A at 125 V DC-13 || 0.1 A at 600 V DC-13
Device Short NameLADN
Complementary
- Non-Overlap Time
- 1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact
- Minimum Switching Current
- 5 mA
- Protection Type
- gG fuse 10 A
- Irms Rated Making Capacity
- 140 A AC conforming to IEC 60947-5-1 || 250 A DC conforming to IEC 60947-5-1
- Minimum Switching Voltage
- 17 V
- Mechanical Durability
- 30 Mcycles
- Width
- 26 mm
Permissible Short-Time Rating100 A 60 °C 1 s || 120 A 60 °C 500 ms || 140 A 60 °C 100 ms
Height48 mm
Insulation Resistance> 10 MOhm
Connections - Terminalsscrew clamp terminals 1 1-4 mm²flexible with cable end || screw clamp terminals 1 1-4 mm²flexible without cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || screw clamp terminals 2 1-4 mm²flexible without cable end || screw clamp terminals 1 1-4 mm²rigid without cable end || screw clamp terminals 2 1-4 mm²rigid without cable end
Tightening Torque1.7 N.m flat Ø 6 mm || 1.7 N.m Philips No 2 || 1.7 N.m pozidriv No 2
Colourdark grey
Depth42 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110807EN_V3
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Environment
- Ambient Air Temperature For Operation
- -5-60 °C
- Ambient Air Temperature For Storage
- -60-80 °C
- Protective Treatment
- TH IEC 60068
Ip Degree Of ProtectionIP20 IEC 60529
Environmental Characteristicnormal environment
Operating Altitude3000 m
