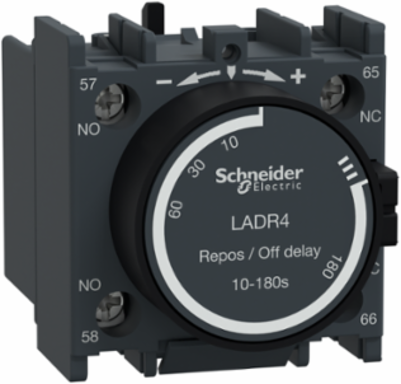

Schneider Electric LADR4 TeSys Deca Time Delay Auxiliary Contact Block 1NO+1NC, 10-180s, Front Mount, 10A 690V
- MPN: LADR4
- PPN: SCH-LADR4
CAD
$243.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys D time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, Off-delay setting range 10-180s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).
Documentation & Downloads
Specifications
Key Specifications
- Product Certifications
- IECEE CB Scheme || UL || CSA || CCC || EAC || UKCA
- Standards
- GB/T 14048.5
- [Ue] Rated Operational Voltage
- 690 V AC 25...400 Hz
- Product Or Component Type
- time delay auxiliary contact block
- Range
- TeSys || TeSys Deca
- Pole Contact Composition
- 1 NO + 1 NC
- [Ie] Rated Operational Current
- 6 A at 120 V AC-15 || 1.04 A at 690 V AC-15 || 0.55 A at 125 V DC-13 || 0.1 A at 600 V DC-13
- Auxiliary Contacts Operation
- time delay
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C)
Timer Typeoff delay
Range CompatibilityTeSys Deca CAD || TeSys Deca LC1D || TeSys F LC1F || TeSys F CR1F
Product NameTeSys Deca
Mounting Locationfront
[Ui] Rated Insulation Voltage690 V IEC 60947-5-1 || 600 V UL 60947-5-1 || 600 V CSA C22.2 No 60947-5-1
Time Delay Range10...180 s
Complementary
- Non-Overlap Time
- 1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact
- Minimum Switching Current
- 5 mA
- Protection Type
- gG fuse 10 A
- Irms Rated Making Capacity
- 140 A at <= 690 V AC conforming to IEC 60947-5-1 || 250 A at <= 690 V DC conforming to IEC 60947-5-1
- Minimum Switching Voltage
- 17 V
- Mechanical Durability
- 5 Mcycles
- Width
- 44 mm
Permissible Short-Time Rating100 A 60 °C 1 s || 120 A 60 °C 500 ms || 140 A 60 °C 100 ms
Height48 mm
Insulation Resistance> 10 MOhm
Connections - Terminalsscrew clamp terminals 1 1-2.5 mm²flexible with cable end || screw clamp terminals 1 1-2.5 mm²flexible without cable end || screw clamp terminals 1 1-2.5 mm²rigid || screw clamp terminals 2 1-2.5 mm²flexible with cable end || screw clamp terminals 2 1-2.5 mm²flexible without cable end || screw clamp terminals 2 1-2.5 mm²rigid || screw clamp terminals
Tightening Torque1.7 N.m flat Ø 6 mm || 1.7 N.m Philips No 2 || 1.7 N.m pozidriv No 2
Colourdark grey
Depth61 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110702EN_V01
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -60-80 °C
- Protective Treatment
- TH IEC 60068
Ip Degree Of ProtectionIP20 IEC 60529
Environmental Characteristicnormal environment
Operating Altitude3000 m
