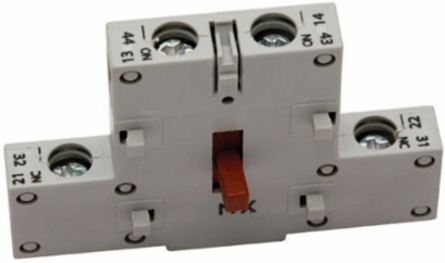

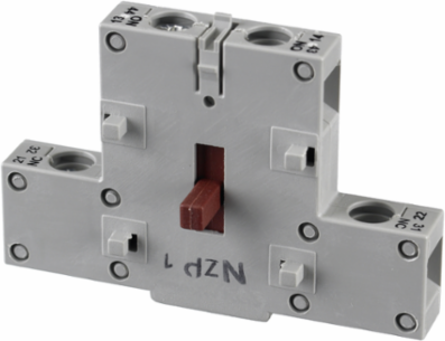

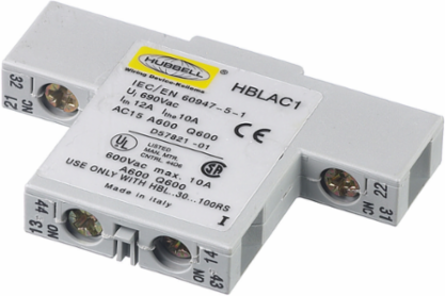

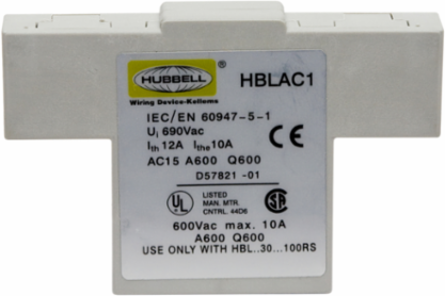

Hubbell Wiring Device-Kellems HBLAC1 Industrial Grade Unfused Disconnect Switch for 30A, 60A, 100A Pilot Duty
- MPN: HBLAC1
- UPC: 783585955117
- PPN: HBL-HBLAC1
- UNSPSC: 39122205
CAD
$106.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Break after Main Break Auxiliary Contact, For 30A and 60A and 100A Pilot Duty.
Features
- Industrial GradeUnfused Switch
- Break after Main Break Auxiliary Contact
- For 30A and 60A and 100A Pilot Duty.
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Safety Product Guide
- General Literature Asset 3 Display Text
- Circuit-Lock® Motor Disconnects
- Width
- 1.800 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current voltage;Electrical - Dielectric Voltage - Withstands 3,000V Min;Electrical - Max. Working Voltage - 600V RMS;Electrical - Operations - Mechanical 10,000 cycles;Electrical 6,000 cycles;Environmental - Flammability - Meets UL 94V0 material classification;Environmental - Moisture Resistance - IP66 suitability;Environmental - Operating Temperature - Maximum continuous +75°C Minimum continuous -40°C;Environmental - UV Resistance - All exposed materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External full adjustable feet;Mechanical - Product Identification - Identification and ratings are part of the external label and receptacle face;Mechanical - Terminal Identification - In accordance with UL, CSA
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Type
- Accessories
- Dielectric Strength
- Withstands 3,000V minimum
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A16A260
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.650 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 15 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585955116
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 2 Display TextCircuit-Lock® Rounded Sloped Top Motor Disconnects
Country of OriginUnited Kingdom
Industry Standard(s)Certified to CSA Standard;Listed to UL Standard;Type 3R and 12K Enclosure Rating
Standards - RoHS Compliance StatusCM
StandardCertified to CSA Standard;Listed to UL Standard;Type 3R and 12K Enclosure Rating
Weight0.1 lb.
StyleAuxiliary Contacts
Description - InvoiceAUX CONTACT, BREAK AFTER BREAK
Harmonization Code8536909999
MSDS FlagNo
SeriesNon-Fused;Fused
BOX SIZE8.400x10.400x9.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585955117
Case Weight6.330 lb.
Lowest Level UOMEach
Pallet Height42.000 in
Pallet Weight479.750 lb.
NAICS Code3353146111
