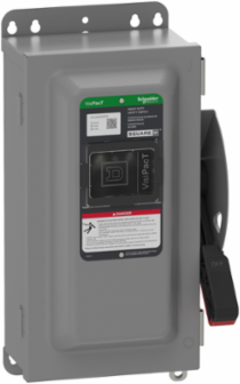

Square D VHU362AWKGL Heavy Duty Safety Switch, 600V, 60A, 3-Pole, NEMA 12, 7.164 Inch Depth
- MPN: VHU362AWKGL
- PPN: SCH-VHU362AWKGL
CAD
$615.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for robust performance in demanding environments, the heavy duty safety switch from Schneider Electric efficiently handles electrical distribution needs with a voltage rating of up to 600V and a current rating of 60A. This 3-pole device is designed to meet NEMA 12 standards, making it suitable for indoor applications where protection from dust and moisture is essential. With its compact design featuring a depth of just 7.164 inches, this switch provides a reliable solution for controlling power while ensuring safety in industrial and commercial settings.
Features
- Rated for 60A at up to 600V AC/DC, the VHU362AWKGL is designed for high-performance industrial applications, including a massive 50 hp rating at 480V (3-phase). This robust power capacity ensures reliable disconnection for heavy machinery and HVAC systems, providing a safe "line-of-sight" disconnect that meets stringent OSHA and NEC requirements.

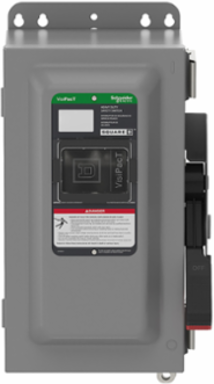

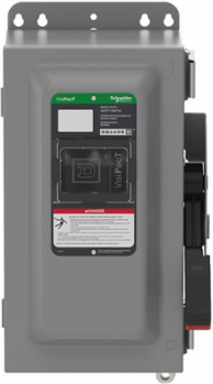

- This "AWKGL" variant includes a factory-installed ground lug and a high-strength viewing window, allowing for safe visual inspection of the contact status while the door remains sealed. By minimizing the need to open the enclosure while the circuit is live, it enhances worker safety and simplifies routine preventative maintenance inspections in high-voltage areas.
- The spring-loaded operating mechanism enforces a rapid opening and closing of the contacts regardless of how fast the operator moves the handle. This "Quick-Make, Quick-Break" action ensures a clean break of the electrical arc, preventing pitting on the copper contacts and dramatically extending the mechanical and electrical life of the switch.
- This unit is UL Listed and far exceeds the endurance requirements of a standard General Duty switch, making it suitable for continuous-duty cycles and high-fault current systems (up to 200kA when used with Class R or J fuses). Choosing this heavy-duty model ensures your facility stays code-compliant and reduces long-term operational costs by avoiding premature equipment fatigue.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|

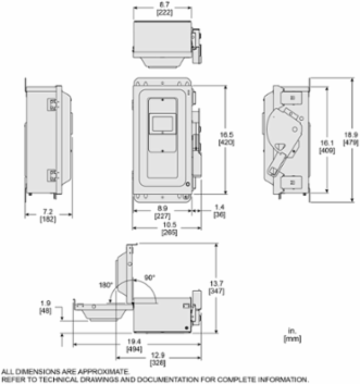

| Depth | 7.164 in |
|---|
Complementary Attributes
| Line Rated Current | 60 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Motor Power Hp | 30 hp at 600 V DC, 10 hp at 240 V AC 50/60 Hz for 1 phase motors20 hp at 240 V AC 50/60 Hz for 3 phase motors25 hp at 480 V AC 50/60 Hz for 1 phase motors, 50 hp at 480 V AC 50/60 Hz for 3 phase motors30 hp at 600 V AC 50/60 Hz for 1 phase motors, 60 hp at 600 V AC 50/60 Hz for 3 phase motors10 hp at 250 V DC |
| Carbon Footprint Of The Distribution Phase [A4] | 2.7383941227168256, 3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.32277916703249643, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 11 kg CO2 eq., 10.925054451802781 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | non-fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Services | factory installation |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2303036EN |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 16.54 in |
| Certificate Agency | UL listed file E2875 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 50-50 lbf.in (3 AWG)45-45 lbf.in (6 AWG...4 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG)50-50 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG) |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 22 kg CO2 eq., 21.882822613347244 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 56 kg CO2 eq., 55.754490053163416 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-04-05 |
| Stocking Flag | Y |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2530 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |

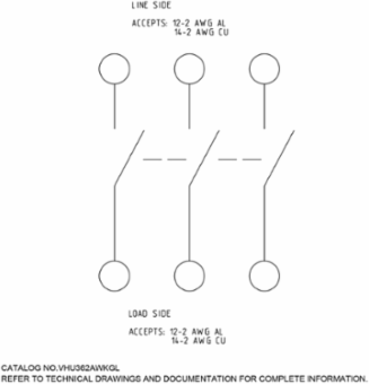

| Awg Gauge | 14 AWG...3 AWG copper12 AWG...3 AWG aluminium |
| Device Composition | field installed kit available |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 92 kg CO2 eq. |
| Wiring Configuration | 3-wire |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 83 |
| Width Nominal | 8.92 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Package Weight(Lbs) | 9.480 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 91.62354040806277 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303036EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2303036EN |
| Nema Degree Of Protection | NEMA 12 galvannealed steel |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
