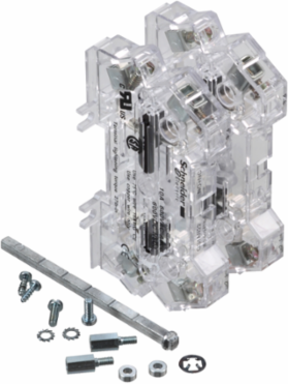

Schneider Electric GS1AN22 TeSys GS Instantaneous Auxiliary Contacts 2NC+2NO for GS1 and GS2

MPN: GS1AN22
PPN: SCH-GS1AN22
UNSPSC: 39121522

$207.65

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys GS instantaneous auxiliary contact block for all 3-pole and 4-pole 50-1250A IEC and 30-800A UL fuse switch-disconnectors GS2D, GS2E, GS2F, GS2G, GS2J, GS2K, GS2L, GS2M, GS2N, GS2P, GS2Q, GS2S, GS2T, GS2V. It provides 2NC+2NO contacts rated up to 4A/48V DC-13 and 10A/230V AC-15, for I/O position signaling. Right-hand side mounting and connection by screw terminals. Multi standards certified (IEC, UL), it conforms to RoHS/REACh regulation.

Features

Instantaneous auxiliary contact for fuse switch-disconnectors GS1 and GS2
Right-hand side mounting and connection by screw terminals
High short circuit performance up to 100 KA
Robust and compact handles
Effective protection thanks to fuse speed fusion

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Complementary Attributes

Line Rated Current	200 A, 60 A, 600 A, 630 A, 315 A, 400 A, 800 A, 250 A, 125 A, 1250 A, 160 A, 50 A, 63 A, 100 A

Ie Rated Operational Current	1 A 220 V DC-13, 10 A 230 V AC-1512 A 127 V AC-154 A 48 V DC-136 A 440 V AC-158 A 400/415 V AC-151.2 A 110 V DC-13

Important Information Attributes

Fuse Type	DIN, NFC, BS
Local Data Status	Publishable
Return Indicator	N
Traceability	No
Weee Applicability	Finished product
Weee Product Category	5
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Product Kit Identifier	N
Contact Application	O and I position signalling
Contacts Type And Composition	2 NO + 2 NC
Electrical Durability	30000 cycles AC-15
Mechanical Durability	30000 cycles
Product Or Component Type	auxiliary contact
Returnability	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Customs Code	8538908180
Warranty In Months	18

Type Of Operating Handle	direct frontal, external frontal, direct right side, external right side
Local Publishable Date	2026-06-27
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1950
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Compatibility Code	test position signalling contact
Contact Operation	instantaneous
Device Short Name	GS1AN
Energy Efficiency Optimized	False
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	TeSys
Sustainable Packaging	No
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	20 A (at 40 °C)

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
