Ideal Industries

Ideal Industries BTC1/0-10 B-TAP Insulation-Piercing Tap Connector, 1/2 Inch Socket Size, 600V, Rated to 90°C

B-TAP Insulation-Piercing Tap Connector, 1/2 Inch Socket Size, 600V, Rated to 90°C
  • MPN: BTC1/0-10
  • UPC: 781789454443
  • PPN: IDL-BTC1/0-10

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$56.97/ EA

Features

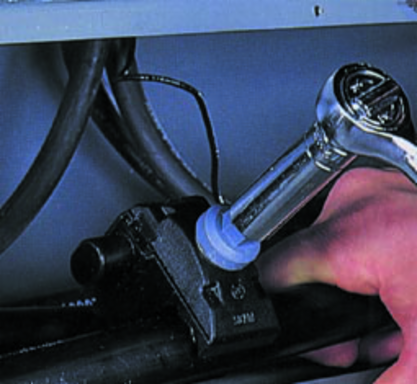

  • Breakaway torque nut snaps off when UL torque requirements are met
  • Second nut remains for easy connector removal
  • Self-insulated housing eliminates the need for tape. Safely installs on energized systems
  • Grease-filled end cap seals end of conductor for superior weather protection
  • Grease-filled boots protect copper teeth from corrosion and prevent arcing
  • Hardened copper teeth pierce insulation and bite into conductors
  • Rated to 90°C and 600V
  • Can be used on Cu-Cu, Al-Al, Cu-Al, and Al-Cu when used in non-tension, insulated applications
  • Full line has wire range from #14 to 750 kcmil

Specifications

Specifications

Conducter Range Run
1/0-8
Voltage Rating
600V
Torque (In. Lbs.)
80
Conducter Range Tap2-10
Socket Size (Inches)1/2
No. of Bolts1
