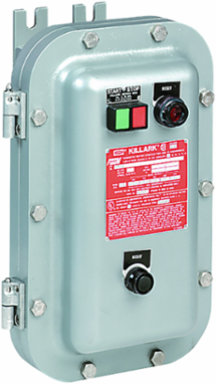

Killark B7011 Motor Starter NEMA Size 0/1, 4.5 Inch x 1 Inch x 6.5 Inch, Aluminum Enclosure
- MPN: B7011
- UPC: 783936020006
- PPN: HBL-B7011
- UNSPSC: 39121521
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
B7 Series- Motor Starter- NEMA Size 0/1
Features
- Type 4, 4X rated – providing protection from hose directed water and corrosion.
- Universal mounting pan, pre-drilled to facilitate easy field installation of starters.
- Provision for grounding supplied as standard.
- More wiring room meets latest NEC wire bend requirements.
- Quick release, captivated, 316 grade stainless steel cover bolts.
- Flange sealing gasket located to the inside of cover bolt to prevent water seepage into enclosure through bolt holes.
- Hinged cover provided as standard for an extra measure of safety and convenience.
- Breaker (MCP) handle can be padlocked in “ON” or “OFF” position.
- Provisions provided for drain and breather plus conduit openings for power and control.
- Reset button provided as standard.
- Two control operator openings provided plugged as standard.
- Additional openings can be factory or field drilled.
- Copper-free (less than 4/10 of 1% copper) enclosure.
- Bolt on bi-directional ductile mounting lugs.
- NEMA 4, 4X rated - providing protection from hose directed water and corrosion. Universal mounting pan, pre-drilled to facilitate easy field installation of starters. Provision for grounding supplied as standard. More wiring room - meets latest NEC wire b
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 4.5 in
- Size
- 4.5 in x 1 in x 6.5 in
- Type
- Aluminum Enclosure For Magnetic Motor Starter
- Width
- 1 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- ENCL, MAGNETIC STARTER SZ1 CLI
- Harmonization Code
- 7616995190
- Lead Time
- 20 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D253
- Gross Weight with Packaging
- 46
- Material
- Copper-free aluminum
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936020006
- NAICS Code
- 3353146101
Dimensions4.5 in x 1 in x 6.5 in
Height6.5 in
ApplicationThe PRISM B7 Series of across-the-line starter and combination motor control centers utilize SSNR single-speed, non-reversing NEMA type starters. PRISM enclosures universal design accomodates, as standard, the magnetic starters made by the following manuf
Special FeaturesNEMA 4, 4X rated - providing protection from hose directed water and corrosion. Universal mounting pan, pre-drilled to facilitate easy field installation of starters. Provision for grounding supplied as standard. More wiring room - meets latest NEC wire b
Voltage Rating600 V
Nema Rating3, 4, 4X
Class CodeD25
Freight Class Code06316011
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
UL File NumberE83696
SeriesB7 Series
BOX SIZE(in)
Master Pack DescriptionEach
