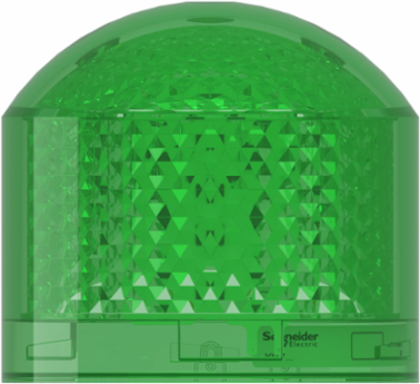

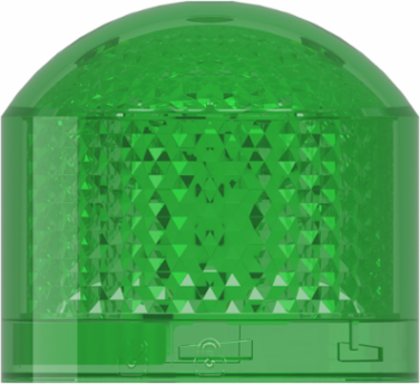

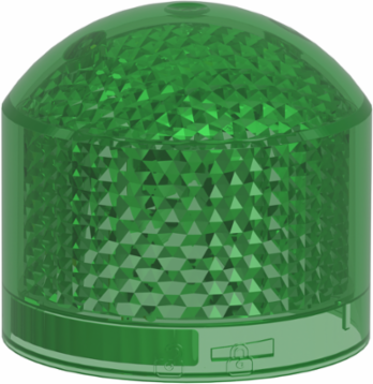

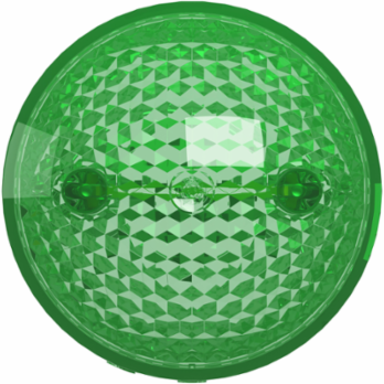

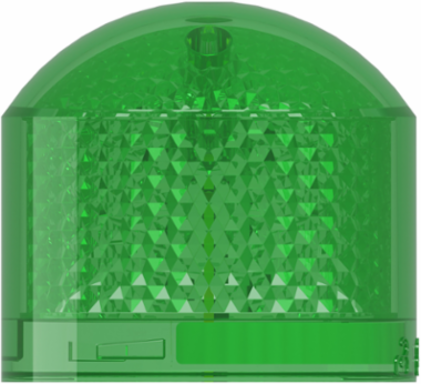

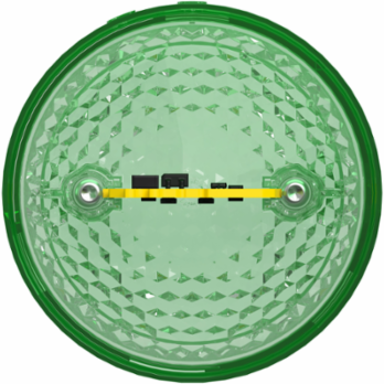

Schneider Electric XVB7L23 Light Module Beacon, Harmony XVB7 Modular Tower Light, Green, Ø70mm, Steady, Colored Lens
- MPN: XVB7L23
- PPN: SCH-XVB7L23
CAD
$133.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Light Module Beacon, Harmony XVB7 Modular Tower Light, Green, Ø70mm, Steady, Colored Lens
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, Indonesia, Philippines, United States
Complementary Attributes
- Rated Operational Voltage Limits
- 21.6...26.4 V AC/DC
Important Information Attributes
- Current Consumption
- 35 mA 24 V AC, 40 mA 24 V DC
- Signalling Type
- steady, steady
- Carbon Footprint Of The Distribution Phase [A4]
- 0.03290387027852485, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0005043411599917425, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 10 kg CO2 eq., 10.189760279105856
- Local Publishable Date
- 2026-03-26
- Pre Comm Date
- 2025-02-06
- Stocking Flag
- N
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Electrical Shock Protection Class
- class II
- Light Source
- LED, green
- Mounting Diameter
- 70 mm
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony XVB7
- Service Life In Hours
- 50000 h
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 11 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2501028EN
- Pep Verification Date
- 2025-04-03
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- [Ue] Rated Operational Voltage
- 24 V AC/DC
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV
- Package Weight(Lbs)
- 92.000 g
- Warranty (In Months)
- 18
Device Compositionbeacon lens, beacon lens
Certificate AgencycULus, CCC, RCM, UKCA, CE
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.09019369433860897
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 0.9889988542101489
Local Data StatusPublishable
Pre Comm Announcement Date2025-02-06
Return IndicatorY
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2501028EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2447
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Device Short NameXVB7
Inrush Current0.5 A
MaterialPC (polycarbonate)
Mounting Positionupright/inverted
Product Or Component Typelight module
ReturnabilityYes
Shock Resistance30 gn 6 ms) in operation
Sustainable PackagingNo
Vibration Resistance6 gn +/- 0.5 mm 10-500 Hz)in operation
Light Source 1 Light Block Colorgreen
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis product is a highly customizable visual and audible signal indicator that can be precisely controlled through an IO-Link which is typically mounted on a tower used to alert people of a specific status or condition from a distance often by flashing a bright light and can indicate things like machine operation, warnings, hazards particularly in industrial applications with highly visible warning or status indicator with 360-degree visibility in life span of 10 years.This product will be active for 73% of the time with a power consumption of 3.168W and adhering to standards IEC 60947-5-1.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Germany, DE
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential, In %89
[Ui] Rated Insulation Voltage50 V
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 11.302361039093132
- Environmental Disclosure
- ENVPEP2501028EN
- Ip Degree Of Protection
- IP66
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-04-03
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2501028EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionType 4/4X/12/13 indoor use only
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2501028EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- light module
Range Of ProductHarmony XVB7
ETIM
- ETIM 8
- EC000232
ETIM 9EC000232
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
