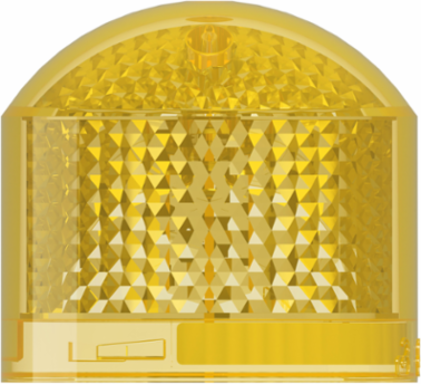

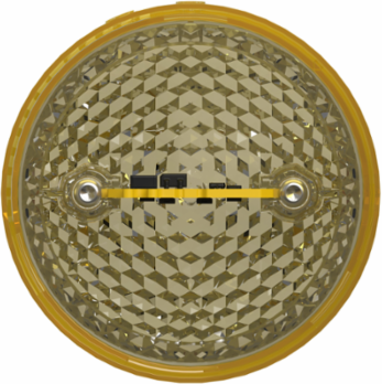

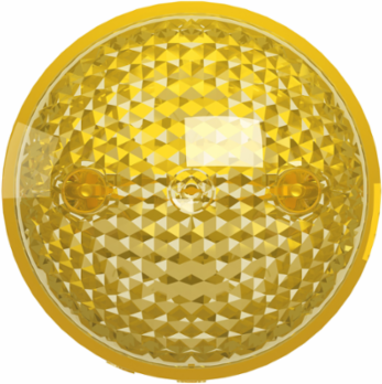

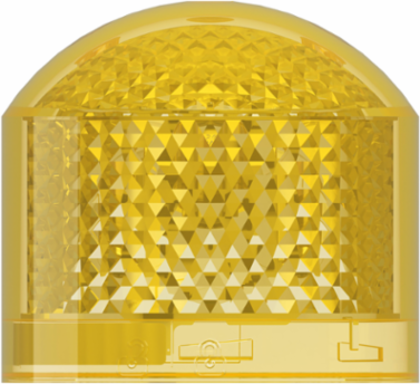

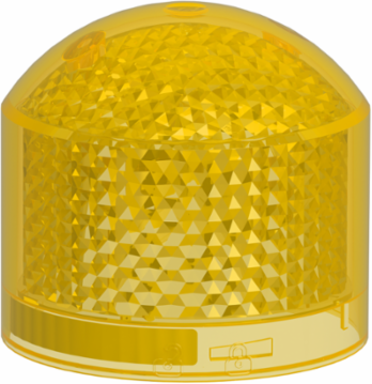

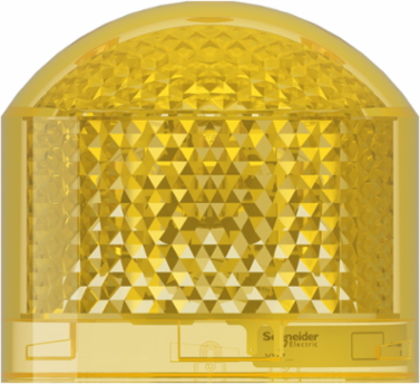

Schneider Electric XVB7L28 Light Module Beacon, Harmony XVB7 Modular Tower Light, Yellow, Ø70mm, Steady, Colored Lens
- MPN: XVB7L28
- PPN: SCH-XVB7L28
CAD
$133.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Light Module Beacon, Harmony XVB7 Modular Tower Light, Yellow, Ø70mm, Steady, Colored Lens
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, Indonesia, Philippines, United States
Complementary Attributes
- Rated Operational Voltage Limits
- 21.6...26.4 V AC/DC
- Ui Rated Insulation Voltage
- 50 V
Ue Rated Operational Voltage24 V AC/DC
Uimp Rated Impulse Withstand Voltage0.5 kV
Important Information Attributes
- Current Consumption
- 35 mA 24 V AC, 40 mA 24 V DC
- Light Source
- LED, yellow
- Mounting Diameter
- 70 mm
- Product Or Component Type
- light module
- Carbon Footprint Of The Distribution Phase A4
- 0.03290387027852485, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0005043411599917425, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 10 kg CO2 eq., 10.189760279105856
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2025-02-06
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Electrical Shock Protection Class
- class II
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Shock Resistance
- 30 gn 6 ms) in operation
- Sustainable Packaging
- No
- Vibration Resistance
- 6 gn +/- 0.5 mm 10-500 Hz)in operation
- Warranty In Months
- 18
- Pep Code
- ENVPEP2501028EN
- Pep Verification Date
- 2025-04-03
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
Device Compositionbeacon lens, beacon lens
MaterialPC (polycarbonate)
Mounting Positionupright/inverted
Signalling Typesteady, steady
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.09019369433860897
Carbon Footprint Of The Manufacturing Phase A1 To A31 kg CO2 eq., 0.9889988542101489
Certificate AgencycULus, CCC, RCM, UKCA, CE
Local Publishable Date2026-03-26
Pre Comm Date2025-02-06
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2501028EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2447
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Device Short NameXVB7
Inrush Current0.5 A
Range Of ProductHarmony XVB7
Service Life In Hours50000 h
Software Versionv6.2.4
Total Lifecycle Carbon Footprint11 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Light Source 1 Light Block Coloryellow
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

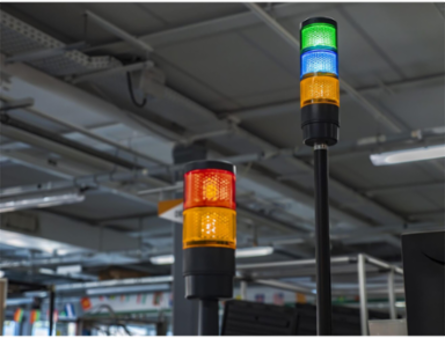

Functional-unit DescriptionThis product is a highly customizable visual and audible signal indicator that can be precisely controlled through an IO-Link which is typically mounted on a tower used to alert people of a specific status or condition from a distance often by flashing a bright light and can indicate things like machine operation, warnings, hazards particularly in industrial applications with highly visible warning or status indicator with 360-degree visibility in life span of 10 years.This product will be active for 73% of the time with a power consumption of 3.168W and adhering to standards IEC 60947-5-1.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Germany, DE
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential, In %89
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Nema Degree Of Protection
- Type 4/4X/12/13 indoor use only
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2501028EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-04-03
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint11.302361039093132
Environmental DisclosureENVPEP2501028EN
Ip Degree Of ProtectionIP66
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2501028EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- light module
Range Of ProductHarmony XVB7
ETIM
- ETIM 8
- EC000232
ETIM 9EC000232
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
