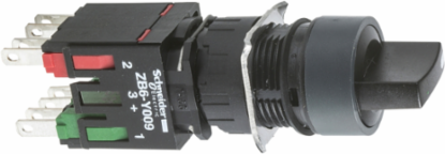

Schneider Electric XB6AD225B Harmony XB6 Selector Switch 16mm, 2 Positions, IP65, NEMA 13
- MPN: XB6AD225B
- PPN: SCH-XB6AD225B
CAD
$44.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Harmony XB6 selector switch from Schneider Electric is designed for robust performance in automation and control applications. This 16mm switch features a compact, 2-position design that ensures ease of operation while maintaining high reliability. With an IP65 rating and compliance with NEMA 13 standards, it is built to withstand challenging environments, providing lasting protection against dust and water. Ideal for a wide range of pilot device applications, this selector switch combines functionality with durability, making it a dependable choice for your control panel needs.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 3 A 120 V AC-15, 1.5 A 240 V AC-15, 0.1 A 250 V DC-13, 0.22 A 125 V DC-13, B300/R300 IEC 60947-5-1
- Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- Electrical Durability
- 1,000,000 cycles AC-15 230 V, DC-13 230 V IEC 60947-5-1 appendix C
- Electrical Reliability
- = 10exp(-8), 5 V 1 mA IEC 60947-5-4, 90% confidence
- Mounting Diameter
- 16 mm (0.63 in)
- Panel Thickness
- 1 to 6 mm (0.03 to 0.23 in)
- Contact Operation
- Slow-break
- Operator Type
- Stay put
- Operator Profile
- Black standard handle
- Bezel Material
- Plastic
- IP Degree of Protection
- IP65 IEC 60529
- Standards
- IEC 60947-5-5, IEC 60947-5-1, IEC 60947-1, JIS C8201-5-1, JIS C8201-1, CSA C22.2 No 14, UL 508, JIS C 852
- Ambient Temperature for Operation
- -25 to 70 C (-13 to 158 F)
- Vibration Resistance
- +/- 3 mm, 2-500 Hz; 5 gn, 2-500 Hz IEC 60068-2-6
- Operating Position
- Any position
- Product Or Component Type
- Complete selector switch
- Country of Origin
- Mexico
- Device Short Name
- XB6
Rated Insulation Voltage250 V IEC 60947-1
Short-Circuit Protection6 A cartridge fuse gG
Mechanical Durability500,000 cycles
Voltage Rating120 V to 250 V, AC-15 and DC-13

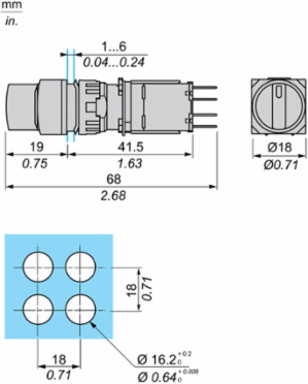

DimensionsHeight 18 mm, Width 18 mm, Depth 68 mm (0.71 x 0.71 x 2.68 in)
TerminalsFaston connectors 2.8 x 0.5 mm
Positions2 positions 60
Shape of Signaling Unit HeadSquare
Contacts MaterialSilver alloy (Ag/Ni)
Electrical Shock Protection ClassClass II IEC 61140
NEMA Degree of ProtectionNEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94
Product CertificationsCCC, CSA, GOST, UL
Ambient Temperature for Storage-40 to 70 C (-40 to 158 F)
Shock Resistance30 gn 18 ms, 50 gn 11 ms IEC 60068-2-27
Contact Composition1 NO + 1 NC (13-14 NO, 21-22 NC)
Environmental ComplianceProp 65 Compliant, RoHS Pro-active compliance (Product out of EU RoHS legal scope), REACH SVHC free, Mercury free, Toxic heavy metal free
Range of ProductHarmony XB6
Warranty18 months
