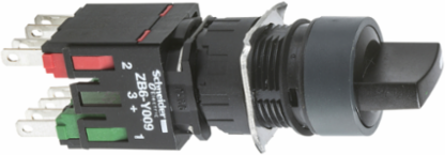

Schneider Electric XB6AD221B Harmony XB6 Selector Switch, 16mm Diameter, 3 Positions, IP65 Rating

MPN: XB6AD221B
PPN: SCH-XB6AD221B
UNSPSC: 39122216

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$34.17

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Harmony XB6 Selector Switch from Schneider Electric is engineered for versatility in automation and control applications, featuring a compact 16mm diameter design that allows for seamless integration into various systems. With three distinct positions, this selector switch offers precise control, catering to a wide range of operational needs. Its robust IP65 rating ensures reliable performance in challenging environments, protecting against dust and water ingress. This makes it an ideal choice for industrial settings where dependability and durability are paramount.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, Mexico
Depth	68 mm

Weight	14 g

Complementary Attributes

Ie Rated Operational Current	3 A 120 V, AC-15, B300 IEC 60947-5-11.5 A 240 V, AC-15, B300 IEC 60947-5-10.1 A 250 V, DC-13, R300 IEC 60947-5-10.22 A 125 V, DC-13, R300 IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage	4 kV IEC 60947-1

Ui Rated Insulation Voltage	250 V 3)IEC 60947-1

Important Information Attributes

Electrical Durability	1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Certificate Agency	UL, CSA, CCC, GOST
Carbon Footprint Of The Distribution Phase A4	0.0018307223, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0015783562, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2403025EN
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Compatibility Code	XB6
Contacts Material	silver alloy (Ag/Ni)
Device Short Name	XB6
Electrical Shock Protection Class	class II conforming to IEC 61140
Mounting Diameter	16 mm
Operator Position Information	2 positions 60°
Positive Opening	with IEC 60947-5-1 appendix K
Product Or Component Type	complete selector switch
Range Of Product	Harmony XB6
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	No
Type Of Operator	stay put
Connections Terminals	Faston connectors 2.8 x 0.5 mm
Data Source	extrapolated product
Width Nominal	18 mm
Customs Code	8536509031
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Vibration Resistance	+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Terminals Description Iso N°1	(13-14)NO, (13-14)NO
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.0254004981
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.3 kg CO2 eq., 0.312750934
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Bezel Material	plastic
Contact Operation	slow-break
Contacts Type And Composition	1 NO + 1 NC
Electrical Reliability	λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Mechanical Durability	500000 cycles
Operating Position	any position
Operator Profile	black standard handle
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TC
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.3 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Height Nominal	18 mm
Nbr. Of Units In Pkg.	1
Short Circuit Protection	6 A cartridge fuse gG
Functional Unit Description	Harmony XB6 illuminated rectangular green push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 16mm diameter panel. It has power consumption of 0.39375 W with use rate of 71% for a period of 10 years and product is adhering to standards IEC 60947-5-1.
Functional Unit Unit	Unit
Recyclability Potential In %	17

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Nema Degree Of Protection	NEMA 4 CSA C22.2 No 94NEMA 4X CSA C22.2 No 94, NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2403025EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Verification Date	2023-10-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.3415605106
Environmental Disclosure	ENVPEP2403025EN
Ip Degree Of Protection	IP65 IEC 60529
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2403025EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
