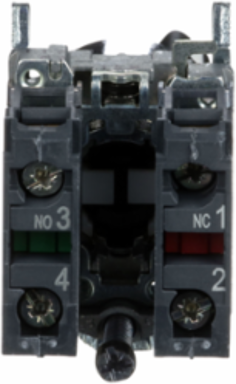

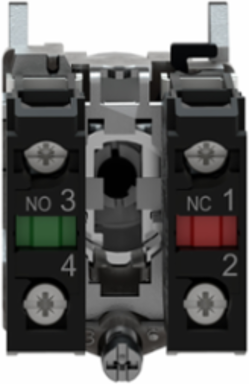

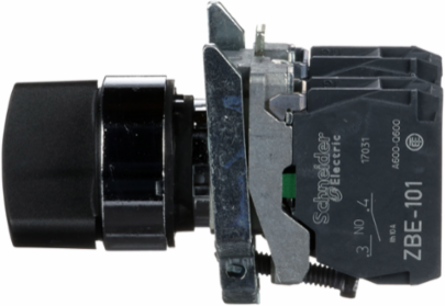

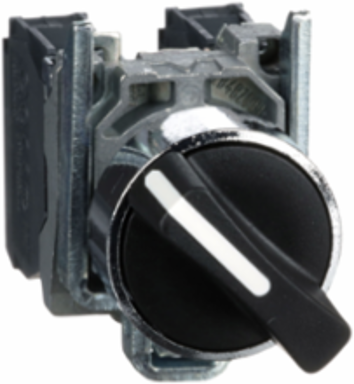

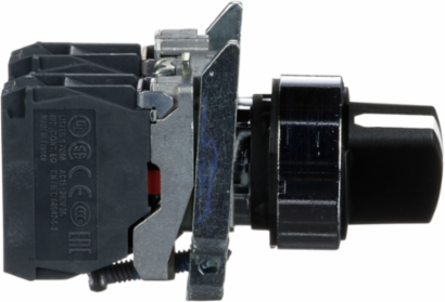

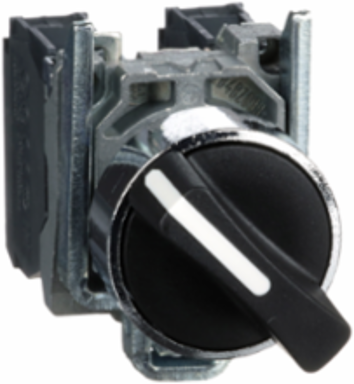

Schneider Electric XB4BD25 Harmony XB4 22mm Metal Selector Switch, 2 Positions, 1NO+1NC
- MPN: XB4BD25
- PPN: SCH-XB4BD25
CAD
$65.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB4 modular black selector switch has 2 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Features
- This heavy-duty selector switch features a 2-position, 90-degree throw layout with a maintained (stay-put) actuation mechanism. Once turned from left to right, the standard black handle locks securely into the selected position, providing an unyielding physical and visual status indication that prevents accidental resets in critical automation control circuits.
- Supplied as a complete, pre-assembled unit, this selector switch features 1 NO (Normally Open) and 1 NC (Normally Closed) contact block arrangement with a slow-break operation. The high-performance contacts are rated up to 600V AC/DC at 10 A, allowing industrial technicians to simultaneously route high-reliability run signals and safety interlocking commands from a single mounting point.
- Built on the legacy Harmony XB4 22mm modular platform, this switch features a premium chromium-plated metal bezel and a robust fixing collar. This silver-alloy metal core provides exceptional structural resistance against mechanical impacts and persistent factory-floor vibrations up to 5 gn, completely eliminating the cracking and stripped threads common with plastic alternatives.
- Engineered to meet strict IP67, IP69, and IP69K ingress ratings, alongside NEMA 4X, and 13 standards, this oil-tight and waterproof operator handles high-pressure, high-temperature water jets without failure. It completely blocks out splashing water, cleaning detergents, cutting oils, and metallic dust, ensuring reliable performance in harsh food processing or automotive manufacturing environments.
- Designed for rapid integration into industry-standard 22mm panel cutouts, this module utilizes a specialized single-screw fixing system that locks onto the mounting collar with up to 0.14 N.m of torque.
- Built for demanding multi-shift industrial applications, this selector switch boasts a mechanical durability rating of 1,000,000 continuous switching cycles. Combined with a wide operating temperature envelope of -40°C to 70°C, it delivers predictable long-term responsiveness, significantly lowering your facility's preventative maintenance overhead and reducing machine downtime.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB4
- Type Of Operator
- stay put
- Shape Of Signaling Unit Head
- round
- Head Type
- standard
- Contacts Type And Composition
- 1 NO + 1 NC
- Bezel Material
- chromium plated metal
- Operator Profile
- black standard handle
- Device Short Name
- XB4
Mounting Diameter22 mm
Product Or Component Typeselector switch
Fixing Collar Materialzamak
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Sale Per Indivisible Quantity1
Contact Operationslow-break
Operator Position Information2 positions 90°
Complementary
- Contacts Usage
- standard contacts
- Terminals Description Iso N°1
- (13-14)NO || (21-22)NC
- Contacts Material
- silver alloy (Ag/Ni)
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Mechanical Durability
- 1000000 cycles
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Depth
- 68 mm
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Height47 mm
Short-Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Positive Openingwith IEC 60947-5-1 appendix K
Net Weight0.105 kg
Device Presentationcomplete product
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Torque Value0.14 N.m NO changing electrical state
Width30 mm
Tightening Torque0.8-1.2 N.m IEC 60947-1
Environment
- Product Certifications
- DNV || LROS (Lloyds register of shipping) || CSA || GL || UL || BV
- Standards
- IEC 60947-5-5 || JIS C8201-5-1 || UL 508 || IEC 60947-5-4 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ambient Air Temperature For Operation-40-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP69 || IP69K || IP67 IEC 60529
Overvoltage Categoryclass I IEC 60536
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
