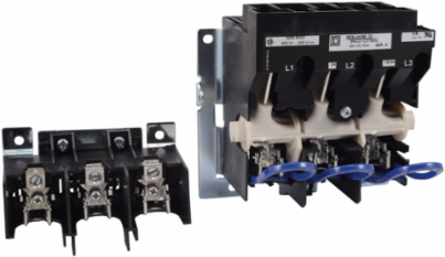

Square D 9422TCN30C Flange-Mounted Disconnect Switch 30A 600V Non-Fusible Variable Depth
Square D 9422TCN30C Flange-Mounted Disconnect Switch 30A 600V Non-Fusible Variable Depth
- MPN: 9422TCN30C
- PPN: SCH-9422TCN30C
- UNSPSC: 39122233
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$612.12/ EA
Description
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This 30 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 7.5 HP at 208 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC and 20 HP at 600 VAC. Switch is also rated for 5 HP at 250 VDC and 15 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles or cable operator. Handle is to be ordered seoparately. Disconnect switch lugs are rated for 14 to 2 AWG with copper wire and 10 to 2 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
Specifications
Complementary Attributes
- Maximum Horse Power Rating
- 7.5 hp 200 V AC, 7.5 hp 230 V AC, 15 hp 460 V AC, 20 hp 575 V AC, 5 hp 250 V DC
Important Information Attributes
- Persona Type Ids
- EU, LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- Yes
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option Id
- STANDARD
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- Disconnect Switch
- Range Of Product
- 9422T
- Sustainable Packaging
- No
- Relationship Type
- Compatible relationship
- Product Manager
- STEVEN NATALE
Persona Type NamesEnd User, Contractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2025-11-13
ServiceabilityNo
Legacy WEEE ScopeIn
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
WD Status5 - INITIALIZED WITH DataSCAN OK (Migration)
Function OptionStandard
Package Weight Lbs4.436 kg
Product Mountingflange cable variable depth
Provided Equipmentordered separately
ReturnabilityNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Kit IdentifierN
Environment Attributes Main
- EU ROHS Directive
- Compliant?, Compliant
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- Disconnect Switch
- Range Of Product
- 9422T
Provided Equipmentordered separately
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
