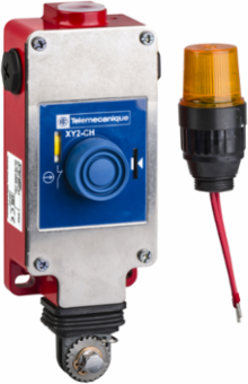

Telemecanique Sensors XY2CH13273 Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CH, 2NC, pilot light 24 V, booted pushbutton

MPN: XY2CH13273
PPN: TES-XY2CH13273
UNSPSC: 39122239

$1033.20

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CH, 2NC, pilot light 24 V, booted pushbutton

Documentation & Downloads

Specifications

Key Specifications

Housing Colour	red RAL 3000
Overvoltage Category	class I EN/IEC 61140 \|\| class I NF C 20-030
Device Short Name	XY2CH

Range Of Product	Telemecanique Emergency stop rope pull switches XY2C
Product Or Component Type	latching emergency stop rope pull switch

Complementary

Trigger Cable Maximum Length	30 m
Reset	by booted push-button
[Us] Rated Supply Voltage	24 V AC/DC
Terminals Description Iso N°1	(11-22)NC \|\| (21-22)NC
Short-Circuit Protection	10 A cartridge fuse gG EN/IEC 60269
Contact Operation	slow-break
Mechanical Durability	800000 cycles
Cable Entry Number	3 tapped entry Pg 13.5 cable gland
Light Block Supply	direct
[Ithe] Conventional Enclosed Thermal Current	10 A
Safety Reliability Data	B10d = 4000000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5
Cover Material	stainless steel
Net Weight	0.865 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV EN/IEC 60947-1
Safety Level	can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 \|\| can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 \|\| can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Connections - Terminals	screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
Contacts Type And Composition	2 NC
Number Of Cables	1
[Ui] Rated Insulation Voltage	500 V 3)EN/IEC 60947-1 \|\| 300 VUL 508
[Ie] Rated Operational Current	3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A \|\| 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Distance Between Cable Supports	5-5 m
Positive Opening	with EN/IEC 60947-5-1
Compatibility Code	XY2CH
Body Material	zamak
Trigger Cable Anchor Point	RH or LH side
Marking	CE
Local Signalling	with pilot light, yellow, 24 V
Tightening Torque	0.8-1.2 N.m
Maximum Resistance Across Terminals	25 MOhm EN/IEC 60255-7 category 3 \|\| 25 MOhm NF C 93-050 method A

Environment

Ambient Air Temperature For Operation	-25-70 °C
Standards	machinery directive 2006/42/EC \|\| work equipment directive 2009/104/EC \|\| EN/IEC 60947-5-5 \|\| EN/IEC 60947-5-1 \|\| EN/ISO 13850 \|\| EN/IEC 60204-1
Shock Resistance	50 gn 11 ms EN/IEC 60068-2-27
Protective Treatment	TC

Ambient Air Temperature For Storage	-40-70 °C
Product Certifications	UL category NISD emergency stop devices
Vibration Resistance	10 gn 10-150 Hz)EN/IEC 60068-2-6
Ip Degree Of Protection	IP65 IEC 60529

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP111159EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
