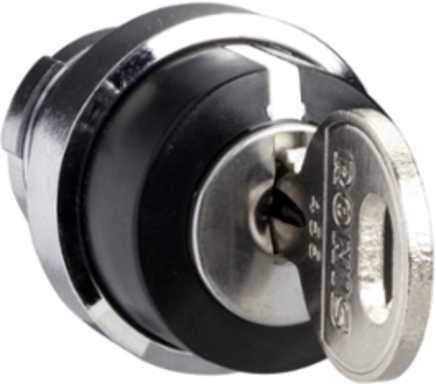

Schneider Electric KAXZ1S131 Key-Operated Cam Switch Head, 22mm Metal, IP65, 30 Angle
- MPN: KAXZ1S131
- PPN: SCH-KAXZ1S131
CAD
$45.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony KAXZ1S131 is a key-operated head with bezel diameter 28.5mm, metal, key operated Ronis 455. It is part of the range Harmony K diameter 16-22mm rotary cam switches.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France, Mexico
Physical Attributes
- Cad Overall Depth
- 21 mm
- Cad Overall Width
- 29 mm
Cad Overall Height29 mm
Important Information Attributes
- Local Data Status
- Publishable
- Return Indicator
- Y
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Compatibility Code
- KAX
- Mechanical Durability
- 1000000 cycles
- Product Or Component Type
- cam switch operating head
- Range Of Product
- Harmony Series K
- Rotary Handle Padlocking
- without
- Sustainable Packaging
- No
- Type Of Operator
- key key 455
- Pep Code
- ENVPEP071103EN
- Package Weight(Lbs)
- 67.000 g
- Warranty (In Months)
- 18
Local Publishable Date2026-01-12
Stocking FlagN
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI071103EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Cam Switch Head Typewith bezel Ø 28.5 mm, metal
Component NameKAX
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Shock Resistance30 gn IEC 68-2-27
Switching Angle30 °
Vibration Resistance5 gn 10-150 Hz)IEC 68-2-6
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C, -25-55 °C
- Ip Degree Of Protection
- IP65 conforming to IEC 529, IP65 conforming to NF C 20-010
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP071103EN
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- front mounting bodies 12 and 20 A Ø 22 mm hole
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Circularity ProfileENVEOLI071103EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
Pep CodeENVPEP071103EN
General Attributes
- Product Or Component Type
- cam switch operating head
Range Of ProductHarmony Series K
ETIM
- ETIM 8
- EC000222
ETIM 9EC000222
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Presentation Of Legend
- with mat black
