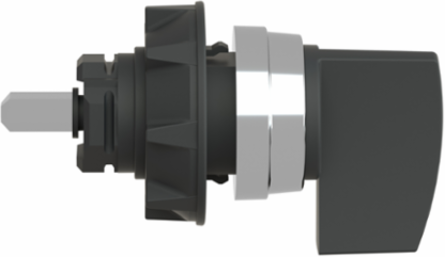

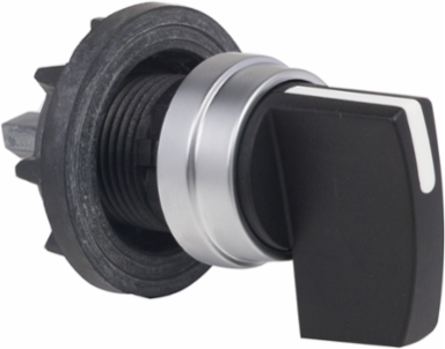

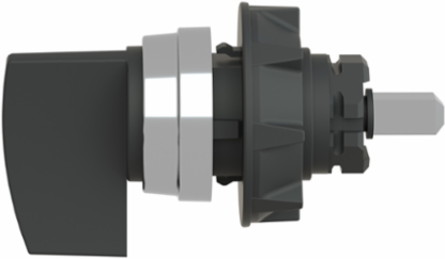

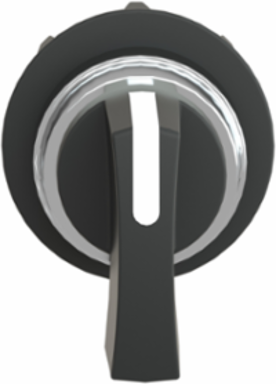

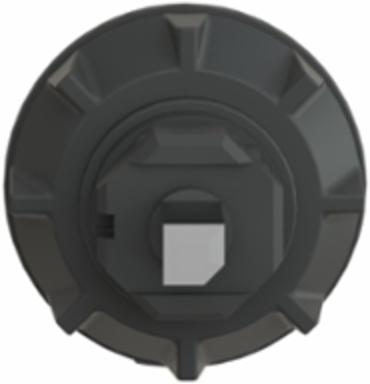

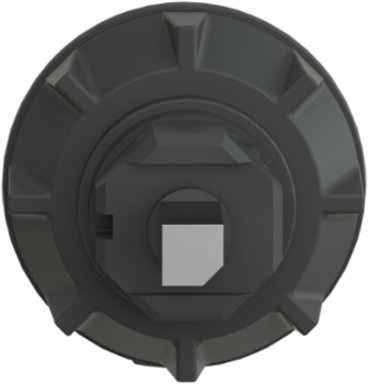

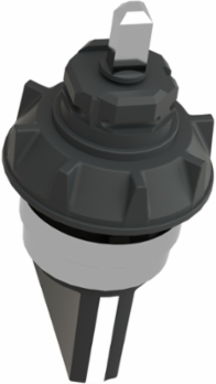

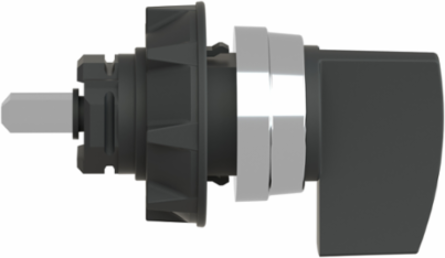

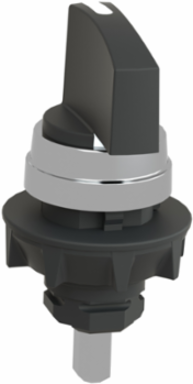

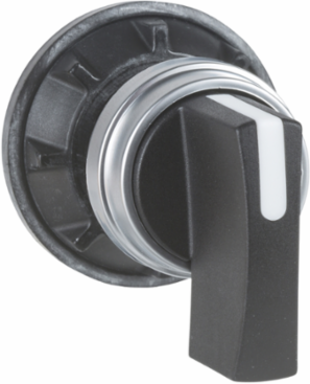

Schneider Electric KBA1H Harmony K1 Cam Switch Operating Head, 22mm Mounting, IP65, Plastic Handle

MPN: KBA1H
PPN: SCH-KBA1H
UNSPSC: 39122221

$32.60

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The KBA1H Harmony K1 Cam Switch Operating Head from Schneider Electric is designed for durability and reliability in automation and control applications. Featuring a robust plastic handle and a convenient 22mm mounting size, this operating head ensures easy installation and use in various settings. Its IP65 rating provides excellent protection against dust and water, making it suitable for demanding environments. With its thoughtful design, this cam switch contributes to efficient control solutions in both industrial and commercial applications.

Features

It is impact resistant, dust resistant, water resistant
Complies with RoHS and REACh directives relating to environmental protection
It is compatible with 12A and 20A by 22mm front mounting bodies
Wide availability throughout an extensive distribution network

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia

Physical Attributes

Cad Overall Depth	77 mm
Cad Overall Width	29 mm

Cad Overall Height	38 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI071103EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Cam Switch Head Type	with bezel Ø 29 mm, plastic with metallic finish
Component Name	KBA
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TC
Returnability	Yes
Shock Resistance	30 gn IEC 68-2-27
Type Of Operator	Black handle 35 mm
Length Total	35 mm
Customs Code	8538908180

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Local Publishable Date	2026-01-12
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	KBA
Mechanical Durability	1000000 cycles
Product Or Component Type	cam switch operating head
Range Of Product	Harmony Series K
Rotary Handle Padlocking	without
Sustainable Packaging	No
Vibration Resistance	5 gn 10-150 Hz)IEC 68-2-6
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-55 °C, -25-55 °C
Ip Degree Of Protection	IP65 conforming to IEC 529, IP65 conforming to NF C 20-010
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP071103EN
Packaging Made With Recycled Cardboard	No
Product Compatibility	front mounting bodies 12 and 20 A Ø 22 mm hole
Reach Regulation	Free of Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Circularity Profile	ENVEOLI071103EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP071103EN
