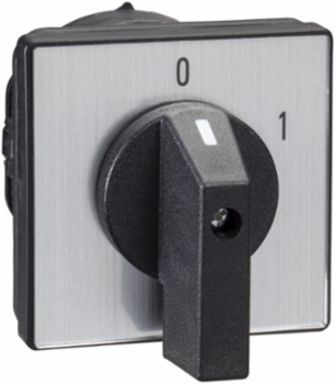

Schneider Electric K30F013UP Complete Cam Switch 3 Poles 32A 64x64mm Front Mounting
- MPN: K30F013UP
- PPN: SCH-K30F013UP
CAD
$164.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony K30 complete cam switch/selector switch has 3 poles (3P). It also has a rating of 32A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 2" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria
Physical Attributes
- Cad Overall Depth
- 106 mm
- Cad Overall Width
- 64 mm
Cad Overall Height64 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- captive screw clamp terminals flexible 2 x 4 mm², captive screw clamp terminals solid 2 x 6 mm²
- Switching Capacity In Ma
- 23000 mA DC 180 V 3 resistive 1 ms), 23000 mA DC 60 V 1 resistive 1 ms), 25000 mA DC 60 V 2 inductive 50 ms), 3200 mA DC 220 V 2 inductive 50 ms), 32000 mA DC 24 V 1 resistive 1 ms), 32000 mA DC 48 V 1 resistive 1 ms), 32000 mA DC 48 V 2 inductive 50 ms), 32000 mA DC 48 V 2 resistive 1 ms), 32000 mA DC 70 V 3 resistive 1 ms), 32000 mA DC 95 V 2 resistive 1 ms), 400 mA DC 660 V 2 resistive 1 ms), 6500 mA DC 220 V 2 resistive 1 ms), 6500 mA DC 330 V 3 resistive 1 ms)11000 mA DC 120 V 2 inductive 50 ms), 11000 mA DC 180 V 3 inductive 50 ms), 11000 mA DC 60 V 1 inductive 50 ms), 1200 mA DC 220 V 1 resistive 1 ms), 1200 mA DC 440 V 2 resistive 1 ms), 1200 mA DC 660 V 3 resistive 1 ms), 16000 mA DC 140 V 3 inductive 50 ms), 16000 mA DC 48 V 1 inductive 50 ms), 16000 mA DC 95 V 2 inductive 50 ms), 23000 mA DC 120 V 2 resistive 1 ms), 25000 mA DC 30 V 1 inductive 50 ms), 25000 mA DC 90 V 3 inductive 50 ms), 3200 mA DC 110 V 1 inductive 50 ms), 3200 mA DC 330 V 3 inductive 50 ms), 32000 mA DC 140 V 3 resistive 1 ms), 32000 mA DC 24 V 1 inductive 50 ms), 32000 mA DC 70 V 3 inductive 50 ms), 400 mA DC 440 V 1 resistive 1 ms), 6500 mA DC 110 V 1 resistive 1 ms)
- Certificate Agency
- cULus 120 V 2 hp 1 phase, cULus 240 V 5 hp 1 phase, cULus 240 V 5 hp 3 phase, cULus 480 V 20 hp 3 phase
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0325197759, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1107762806, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cam Switch Head Type
- with front plate 64 x 64 mm
- Component Name
- K30
- Fixing Mode
- 4 holes
- Mounting Location
- front
- Off Position
- without Off position
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TC
- Return
- without
- Rotary Handle Padlocking
- without
- Sustainable Packaging
- Yes
- Tightening Torque
- 1.2 N.m
- Type Of Operator
- Black handle
- Pep Code
- ENVPEP2312055EN
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR
- [Ui] Rated Insulation Voltage
- 690 V 3)IEC 60947-1
- Short-circuit Protection
- 50 A cartridge fuse gG
- Package Weight(Lbs)
- 271.0 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Overvoltage Categoryclass II conforming to IEC 60536, class II conforming to NF C 20-030
Switching Positionsleft: 330°, right: 30°
[Uimp] Rated Impulse Withstand Voltage6 kV EN 947-1, 6 kV IEC 947-1
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.4629193458
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.6912891397
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Cam Switch Functionchangeover switch
Compatibility CodeK30F
Contact Operationslow-break
Mechanical Durability300000 cycles
Number Of Poles3P
Positive Openingwith
Product Or Component Typecomplete cam switch
Range Of ProductHarmony K
ReturnabilityNo
Software Versionv5.9.4
Switching Angle30 °
Total Lifecycle Carbon Footprint2 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionK1 voltmeter switch is ideal for switching between phase-phase and phase-neutral voltage measurements on a switchboard, has a rated voltage of 690V AC. It has a square shape and a metallic legend with black marking. It is IP65 and installs with screws. This voltmeter phase switch offers the maximum mechanical and electrical robustness of its class, for prolonged operation without maintenance. Its high IP allows for handling of panel operations in very dusty and wet environments, including outdoors.
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR
[Ith] Conventional Free Air Thermal Current32 A
Short-circuit Current5000 A
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C, -25-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 2.297504542
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2312055EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2312055EN
Ip Degree Of ProtectionIP40 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- complete cam switch
Range Of ProductHarmony K
ETIM
- ETIM 8
- EC001105
ETIM 9EC001105
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Presentation Of Legend
- with metallic, 1 - 2 black
