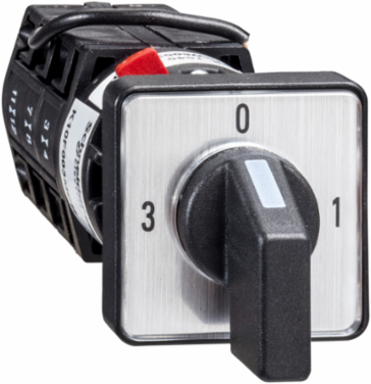

Schneider Electric K10F003MCH Cam ammeter switch, Harmony K, Ø16 or 22mm , plastic, for 3 circuits, position 0, 90°, 10A, 30x30mm, marked 0/1/2/3
Schneider Electric K10F003MCH Cam ammeter switch, Harmony K, Ø16 or 22mm , plastic, for 3 circuits, position 0, 90°, 10A, 30x30mm, marked 0/1/2/3
- MPN: K10F003MCH
- PPN: SCH-K10F003MCH
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$121.65/ EA
Description
Cam ammeter switch, Harmony K, Ø16 or 22mm , plastic, for 3 circuits, position 0, 90°, 10A, 30x30mm, marked 0/1/2/3
Specifications
Environment
- Ambient Air Temperature For Operation
- -20-55 °C
- Standards
- CENELEC EN 50013 || EN/IEC 60947-3 || EN/IEC 60947-5-1
- Electrical Shock Protection Class
- class II IEC 60536
Product CertificationscULus
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Short-Circuit Protection
- 10 A cartridge fuse gG
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- Switching Angle
- 90 °
- Electrical Durability
- 100000000 cycles
- Contact Operation
- slow-break
- Rated Power In Hp
- 1 hp 220/240 V AC, 3 phases || 0.33 hp 110/120 V AC, 1 phase || 0.75 hp 110/120 V AC, 3 phases || 0.75 hp 220/240 V AC, 1 phase
- Cad Overall Width
- 30 mm
- Rated Operational Power In W
- 1800 W AC-23A, 220/240 V 3 phases || 370 W AC-23A, 110/120 V 1 phase || 750 W AC-23A, 220/240 V 1 phase
Net Weight0.055 kg
Cad Overall Height30 mm
Electrical Connectioncaptive screw clamp terminals 2 x 1.5 mm²
[Ui] Rated Insulation Voltage440 V 3)IEC 60947-1
Mechanical Durability1000000 cycles
[Ie] Rated Operational Current Dc10 A 24 V resistive || 0.3 A 220 V resistive || 0.7 A 110 V resistive
Cad Overall Depth100 mm
[Ie] Rated Operational Current Ac10 A 400 V AC-1 || 10 A 400 V AC-21A || 3 A 240 V AC-15 || 6 A AC-15
Specifications
- Range Of Product
- Harmony K
- Presentation Of Legend
- with metallic, 0 - 1 - 2 - 3 black
- Ip Degree Of Protection
- contact block: IP20 || operating head: IP65 conforming to IEC 60529
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Component Name
- K10
- Switching Positions
- right: 0° - 90° - 180° - 270°
- Product Mounting
- front mounting
- Return
- without
Fixing ModeØ 16 or 22 mm hole
Type Of Measurementfor 3 circuits
Product Or Component Typecomplete cam switch
Cam Switch Functionammeter switch
Type Of Operatorblack handle
Cam Switch Head Typewith front plate 30 x 30 mm
Rotary Handle Padlockingwithout
Off Positionwith Off position
