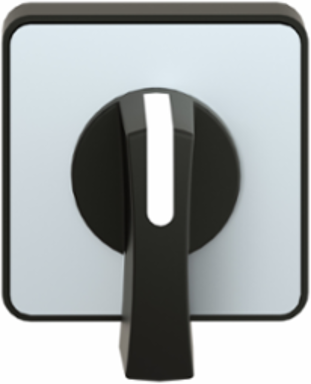

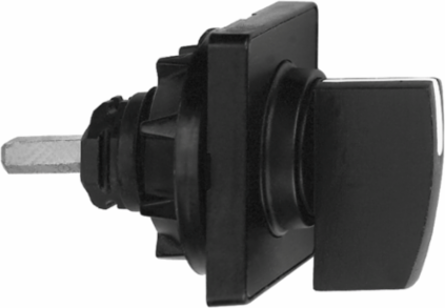

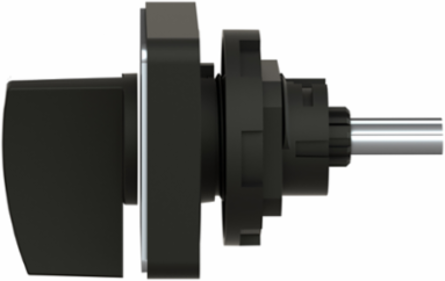

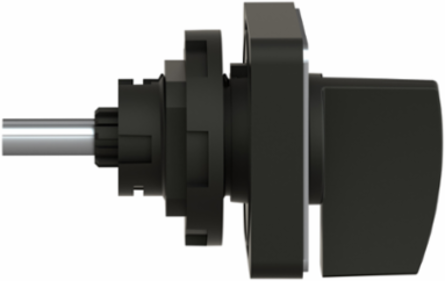

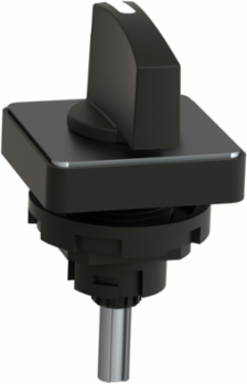

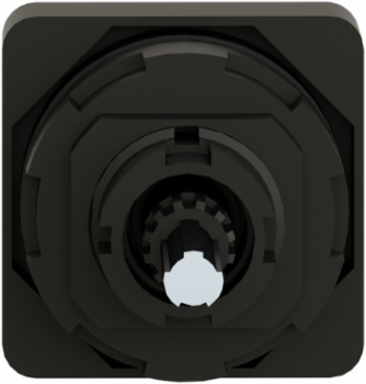

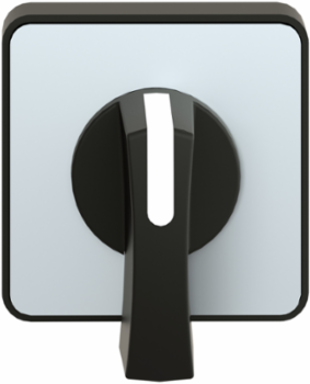

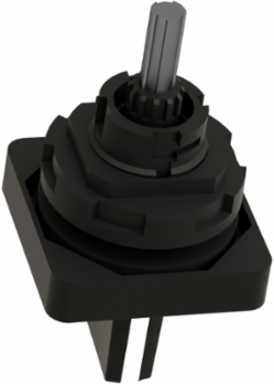

Schneider Electric KAC1H Harmony K Cam Switch Operating Head, 45x45mm Plate, IP65, Black Handle
- MPN: KAC1H
- PPN: SCH-KAC1H
CAD
$28.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Schneider Electric Harmony K operating head has a 45 x 45 mm size. It has black color with black handle. This black operating head for 22mm diameter is designed to meet most industrial and process control application thanks to a compact size. It is designe to have an easy integration with 16 millimeter and 22 millimeter diameter units and has several selection functions. Simple and modular design to allow for easy installation. Designed to fit in 16-22mm cutout, ensuring compatibility when installing in pre-existing machinery. Sturdy plastic body resistant (strength) to shocks and corrosion. IP65 on its front part allow for installation in harsh (heavy) environment or outdoor.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, Mexico
Physical Attributes
- Cad Overall Depth
- 77 mm
- Cad Overall Width
- 45 mm
Cad Overall Height45 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Cam Switch Head Type
- with front plate 45 x 45 mm
- Component Name
- KAC
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- No
- Shock Resistance
- 30 gn IEC 68-2-27
- Type Of Operator
- Black handle 35 mm
- Length Total
- 35 mm
- Package Weight(Lbs)
- 57.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeKAC
Mechanical Durability1000000 cycles
Product Or Component Typecam switch operating head
Range Of ProductHarmony Series K
Rotary Handle Padlockingwithout
Sustainable PackagingNo
Vibration Resistance5 gn 10-150 Hz)IEC 68-2-6
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C, -25-55 °C
- Ip Degree Of Protection
- IP65 conforming to IEC 529, IP65 conforming to NF C 20-010
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- front mounting bodies 12 and 20 A Ø 22 mm hole
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- cam switch operating head
Range Of ProductHarmony Series K
ETIM
- ETIM 8
- EC000222
ETIM 9EC000222
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Presentation Of Legend
- with mat black
