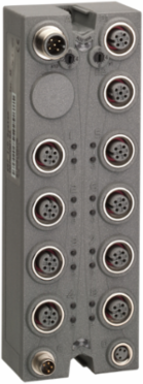

Schneider Electric TM7NCOM16A Modicon TM7 CANopen I/O Block, IP67, 16 I/O, 24V DC, 0.32 kg
- MPN: TM7NCOM16A
- PPN: SCH-TM7NCOM16A
CAD
$951.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This product is part of the Modicon TM7 range, modular I/O system. This CANopen interface block provides 16 I/O blocks with positive discrete input logic and transistor discrete output. It is an interface block with a rated operational voltage of 24V DC, a discrete I/O voltage of 24V DC and a discrete input current of 4.4mA. It is an IP67 rated product. It weighs 0.32kg. This product is certified by ATEX II 3g EEx nA II T5, C-Tick, CE, CURus and GOST-R. It meets IEC 61131-2 standards. This range is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It can be fixed with screws. Dust/damp-proof and robust, the modular IO system Modicon TM7 enables connection of sensors and actuators at the heart of processes or machines in harsh environments. The Modicon TM7 CANopen interface blocks enable sensors and actuators distributed over machines to be connected via the CANopen fieldbus. These interface blocks communicate on the bus.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Modicon TM7
- Product Or Component Type
- CANopen interface I/O block
- Input/Output Number Of Splitter Box
- 16 I/O
- Enclosure Material
- plastic
[Ue] Rated Operational Voltage24 V DC
Input/Output Number16
Bus TypeCANopen
Range CompatibilityModicon LMC058 || Modicon M258
Complementary
- Discrete Output Type
- transistor
- Fixing Mode
- by 2 screws
- Discrete Output Voltage Type
- DC
- Discrete Input Number
- 0-16 configurable by software
- Discrete Output Current
- <= 0.5 A
- Net Weight
- 0.32 kg
- Discrete Input Logic
- positive
- Local Signalling
- bus diagnostic 2 LEDs || actuator power supply diagnostics 1 LED || sensor power supply diagnostics 1 LED
Discrete Input Voltage24 V
Discrete Input Voltage TypeDC
Discrete Output Number0-16 configurable by software
Discrete Input Current4.4 mA
Electrical Connection1 male connector M12 - A coding - 5 ways CANopen bus IN || 1 female connector M12 - B coding - 4 ways TM7 bus OUT || 1 male connector M8 - 4 ways power IN || 1 female connector M8 - 4 ways power OUT || 1 female connector M12 - A coding - 5 ways CANopen bus OUT || 8 female connectors M12 - A coding - 5 ways sensor or actuator
Discrete Output Voltage24 V
Sensor Power Supply24-24 V, 500 mA for all channels overload, short-circuit and reverse polarity protection
Operating Positionany position
Environment
- Product Certifications
- ATEX II 3g EEx nA II T5 || C-Tick || cURus || GOST-R
- Resistance To Electromagnetic Fields
- 10 V/m 0.08-2 Hz IEC 61000-4-3 || 1 V/m 2-2.7 Hz IEC 61000-4-3
- Storage Altitude
- 0-3000 m
- Marking
- CE
- Ip Degree Of Protection
- IP67 IEC 61131-2
- Electromagnetic Compatibility
- EN/IEC 61000-4-6
- Surge Withstand
- 1 kV power supply (common mode) IEC 61000-4-5 || 0.5 kV power supply (differential mode) IEC 61000-4-5 || 1 kV unshielded links (common mode) IEC 61000-4-5 || 0.5 kV unshielded links (differential mode) IEC 61000-4-5 || 1 kV shielded links (common mode) IEC 61000-4-5 || 0.5 kV shielded links (differential mode) IEC 61000-4-5
- Relative Humidity
- 5-95 % without condensation or dripping water
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4 power supply) || 1 kV IEC 61000-4-4 input/output) || 1 kV IEC 61000-4-4 shielded cable)
Ambient Air Temperature For Operation-10-60 °C
StandardsIEC 61131-2
Shock Resistance30 gn 11 ms IEC 60721-3-5 Class 5M3
Vibration Resistance7.5 mm constant amplitude 2-8 Hz)IEC 60721-3-5 Class 5M3 || 2 gn constant acceleration 8-200 Hz)IEC 60721-3-5 Class 5M3 || 4 gn constant acceleration 200-500 Hz)IEC 60721-3-5 Class 5M3
Disturbance Radiated/ConductedCISPR 11
Pollution Degree2 IEC 60664
Ambient Air Temperature For Storage-25-85 °C
Resistance To Electrostatic Discharge6 kV in contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
Operating Altitude0...2000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1409005EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1409005EN
