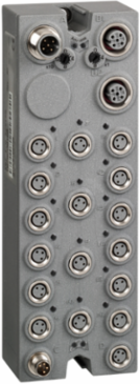

Schneider Electric TM7NCOM16B CANopen interface I/O block, Modicon TM7, IP67, 16 M8
Schneider Electric TM7NCOM16B CANopen interface I/O block, Modicon TM7, IP67, 16 M8
- MPN: TM7NCOM16B
- PPN: SCH-TM7NCOM16B
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$961.86/ EA
Description
CANopen interface I/O block, Modicon TM7, IP67, 16 M8
Specifications
Environment
- Product Certifications
- GOST-R || C-Tick || ATEX II 3g EEx nA II T5 || cURus
- Resistance To Electromagnetic Fields
- 10 V/m 0.08-2 Hz IEC 61000-4-3 || 1 V/m 2-2.7 Hz IEC 61000-4-3
- Storage Altitude
- 0-3000 m
- Marking
- CE
- Ip Degree Of Protection
- IP67 IEC 61131-2
- Electromagnetic Compatibility
- EN/IEC 61000-4-6
- Surge Withstand
- 1 kV power supply (common mode) IEC 61000-4-5 || 0.5 kV power supply (differential mode) IEC 61000-4-5 || 1 kV unshielded links (common mode) IEC 61000-4-5 || 0.5 kV unshielded links (differential mode) IEC 61000-4-5 || 1 kV shielded links (common mode) IEC 61000-4-5 || 0.5 kV shielded links (differential mode) IEC 61000-4-5
- Relative Humidity
- 5-95 % without condensation or dripping water
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4 power supply) || 1 kV IEC 61000-4-4 input/output) || 1 kV IEC 61000-4-4 shielded cable)
Ambient Air Temperature For Operation-10-60 °C
StandardsIEC 61131-2
Shock Resistance30 gn 11 ms IEC 60721-3-5 Class 5M3
Vibration Resistance7.5 mm constant amplitude 2-8 Hz)IEC 60721-3-5 Class 5M3 || 2 gn constant acceleration 8-200 Hz)IEC 60721-3-5 Class 5M3 || 4 gn constant acceleration 200-500 Hz)IEC 60721-3-5 Class 5M3
Disturbance Radiated/ConductedCISPR 11
Pollution Degree2 IEC 60664
Ambient Air Temperature For Storage-25-85 °C
Resistance To Electrostatic Discharge6 kV in contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
Operating Altitude0...2000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1409005EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1409005EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Discrete Output Type
- transistor
- Fixing Mode
- by 2 screws
- Discrete Output Voltage Type
- DC
- Discrete Input Number
- 0-16 configurable by software
- Discrete Output Current
- <= 0.5 A
- Net Weight
- 0.32 kg
- Discrete Input Logic
- positive
- Local Signalling
- bus diagnostic 2 LEDs || actuator power supply diagnostics 1 LED || sensor power supply diagnostics 1 LED
Discrete Input Voltage24 V
Discrete Input Voltage TypeDC
Discrete Output Number0-16 configurable by software
Discrete Input Current4.4 mA
Electrical Connection1 male connector M12 - A coding - 5 ways CANopen bus IN || 1 female connector M12 - B coding - 4 ways TM7 bus OUT || 1 male connector M8 - 4 ways power IN || 1 female connector M8 - 4 ways power OUT || 1 female connector M12 - A coding - 5 ways CANopen bus OUT || 16 female connectors M8 - 3 ways sensor or actuator
Discrete Output Voltage24 V
Sensor Power Supply24-24 V, 500 mA for all channels overload, short-circuit and reverse polarity protection
Operating Positionany position
Specifications
- Range Of Product
- Modicon TM7
- Product Or Component Type
- CANopen interface I/O block
- Input/Output Number Of Splitter Box
- 16 I/O
- Enclosure Material
- plastic
[Ue] Rated Operational Voltage24 V DC
Input/Output Number16
Bus TypeCANopen
Range CompatibilityModicon LMC058 || Modicon M258
