Schneider Electric TM7BDI16A Discrete I/O expansion block, Modicon TM7, IP67, 16 DI, 24 V DC, M12 connector
Schneider Electric TM7BDI16A Discrete I/O expansion block, Modicon TM7, IP67, 16 DI, 24 V DC, M12 connector
- MPN: TM7BDI16A
- PPN: SCH-TM7BDI16A
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$508.46/ EA
Description

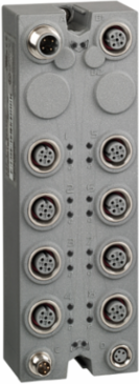

Discrete I/O expansion block, Modicon TM7, IP67, 16 DI, 24 V DC, M12 connector
Specifications
Environment
- Product Certifications
- cURus || ATEX II 3g EEx nA II T5 || GOST-R || C-Tick
- Standards
- IEC 61131-2
- Electromagnetic Compatibility
- electrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2 || electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2 || susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz IEC 61000-4-3 || susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3 || electrical fast transient/burst immunity test, 2 kV power supply IEC 61000-4-4 || electrical fast transient/burst immunity test, 1 kV input/output IEC 61000-4-4 || electrical fast transient/burst immunity test, 1 kV shielded cable IEC 61000-4-4 || 1.2/50 µs shock waves immunity test, 0.5 kV power supply (common mode) IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 1 kV power supply (differential mode) IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 0.5 kV unshielded links (common mode) IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 1 kV unshielded links (differential mode) IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 0.5 kV shielded links (common mode) IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 1 kV shielded links (differential mode) IEC 61000-4-5 || conducted RF disturbances IEC 61000-4-6 || conducted and radiated emissions CISPR 11
- Marking
- CE
- Ip Degree Of Protection
- IP67 IEC 61131-2
- Ambient Air Temperature For Storage
- -25-85 °C
- Operating Altitude
- 0...2000 m
Ambient Air Temperature For Operation-10-60 °C
Storage Altitude0-3000 m
Shock Resistance30 gn 11 ms IEC 60721-3-5 Class 5M3
Vibration Resistance7.5 mm constant amplitude 2-8 Hz)IEC 60721-3-5 Class 5M3 || 2 gn constant acceleration 8-200 Hz)IEC 60721-3-5 Class 5M3 || 4 gn constant acceleration 200-500 Hz)IEC 60721-3-5 Class 5M3
Pollution Degree2 IEC 60664
Relative Humidity5-95 % without condensation or dripping water
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1409005EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1409005EN
Complementary
- Discrete Input Voltage
- 24 V
- Discrete Input Voltage Type
- DC
- Discrete Input Current
- 7 mA
- Net Weight
- 0.32 kg
- Sensor Power Supply
- 24-24 V, 500 mA for all channels overload, short-circuit and reverse polarity protection
- Operating Position
- any position
Fixing Modeby 2 screws
Discrete Input Number16-16
Electrical Connection1 male connector M12 - B coding - 4 ways bus IN || 1 female connector M12 - B coding - 4 ways bus OUT || 1 male connector M8 - 4 ways power IN || 1 female connector M8 - 4 ways power OUT || 8 female connectors M12 - 5 ways sensor
Discrete Input Logicpositive
Local Signallingbus diagnostic 2 LEDs || sensor power supply diagnostics 2 LEDs
Specifications
- Range Of Product
- Modicon TM7
- Product Or Component Type
- discrete I/O expansion block
- Input/Output Number Of Splitter Box
- 16 I
- Enclosure Material
- plastic
[Ue] Rated Operational Voltage24 V DC
Input/Output Number16
Bus TypeTM7 bus
Range CompatibilityModicon LMC058 || Modicon M258
Downloads
