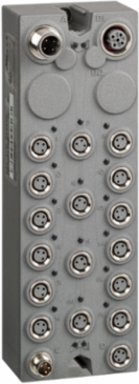

Schneider Electric TM7BDI16B Discrete I/O Expansion Block, 16 DI, 24 V DC, IP67, M8 Connector
- MPN: TM7BDI16B
- PPN: SCH-TM7BDI16B
CAD
$520.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric TM7BDI16B Discrete I/O Expansion Block is an essential component for enhancing automation systems, featuring 16 discrete inputs designed for 24 V DC applications. With its IP67 rating, this expansion block is built to withstand challenging environments, making it suitable for various industrial settings. Equipped with an M8 connector, installation is straightforward, ensuring seamless integration into existing systems. This product exemplifies reliability and efficiency in data acquisition and control, reinforcing Schneider Electric's commitment to providing robust solutions for automation.
Documentation & Downloads
Specifications
Additional
- Input/Output Number
- 16
- Discrete Input Current
- 7 mA
- Sensor Power Supply
- 24 V, 500 mA with overload, short-circuit and reverse polarity protection
- Rated Operational Voltage
- 24 V DC
- Storage Temperature Range
- -25 to 85 °C
- Pollution Degree
- 2 IEC 60664
- Storage Altitude
- 0 to 3000 m
- Shock Resistance
- 30 gn, 11 ms IEC 60721-3-5 Class 5M3
- Ingress Protection
- IP67 IEC 61131-2
- Enclosure Material
- Plastic
- Fixing Mode
- By 2 screws
- Operating Position
- Any position
- Product Certifications
- GOST-R, C-Tick, cURus, ATEX II 3g EEx nA II T5
- Mercury Free
- Yes
- RoHS Compliance
- Pro-active compliance, RoHS, REACh, PVC Free, China RoHS
Discrete Input Voltage24 V DC
Discrete Input LogicPositive
Bus TypeTM7 bus
Operating Temperature Range-10 to 60 °C
Relative Humidity5 to 95 % non-condensing
Operating Altitude0 to 2000 m
Vibration Resistance7.5 mm 2-8 Hz, 2 gn 8-200 Hz, 4 gn 200-500 Hz IEC 60721-3-5 Class 5M3
Electrical ConnectionM12 (bus IN/OUT, B coding, 4 ways), M8 (power IN/OUT 4 ways, sensor 3 ways)
Input/Output Number Of Splitter Box16
Net Weight0.32 kg (0.71 lb)
Range CompatibilityModicon LMC058, Modicon M258
StandardsIEC 61131-2
MarkingCE
Toxic Heavy Metal FreeYes
