Balluff

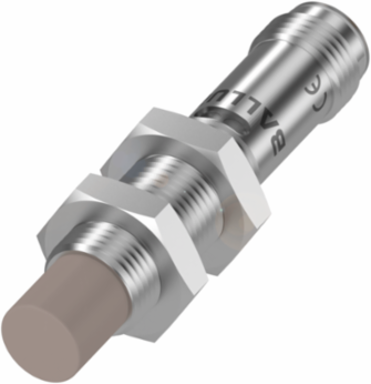

Balluff BCS M12K4D2-GSM80G-S04G Capacitive Level Sensor, Ø 12 x 60 mm, PEEK Surface, IP67

Capacitive Level Sensor, Ø 12 x 60 mm, PEEK Surface, IP67
  • MPN: BCS M12K4D2-GSM80G-S04G
  • PPN: BAL-BCS0179

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$381.52/ EA

Description

These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.

Specifications

Specifications

Dimension
Ø 12 x 60 mm
Thread (A)
M12x1
Connection
Connector, M12x1-Male, 4-pin
Switching frequency
100 Hz
Sensitivity
Switching distance teachable
Material sensing surface
PEEK
Operating voltage Ub
12-30 VDC
IP rating
IP67
SeriesM12
Installationnon-flush
Switching outputPNP/NPN/push-pull NO/NC
Range0.5-8 mm
Housing materialStainless steel (1.4404)
Ambient temperature-10-80 °C
Approval/ConformityCE, cULus, EAC, WEEE
