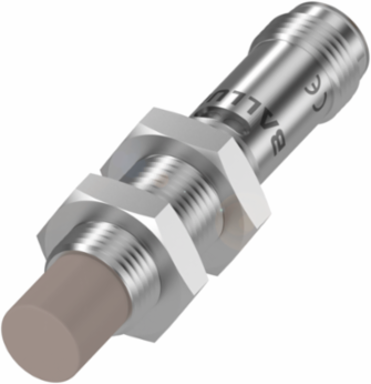

Balluff BCS M12K4D2-PIM80G-S04G Capacitive Level Sensor, Ø 12 x 60 mm, IP67, PNP Normally Open
- MPN: BCS M12K4D2-PIM80G-S04G
- PPN: BAL-BCS017C
CAD
$392.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 18-30 VDC
- Switching Frequency
- 100 Hz
- Dimension
- Ø 12 x 60 mm
- Thread Size
- M12x1
- Material Sensing Surface
- PEEK
- Approval/Conformity
- cULus, CE, IO-Link, EAC, WEEE
- Ambient Temperature Range
- -10 to 80 °C
- Sensitivity
- Switching distance teachable
Switching OutputPNP Normally Open (NO)
Range0.5-8 mm
ConnectionM12x1 Male, 4-pin
Housing MaterialStainless Steel (1.4404)
IP RatingIP67
InterfaceIO-Link 1.1
Installationnon-flush
