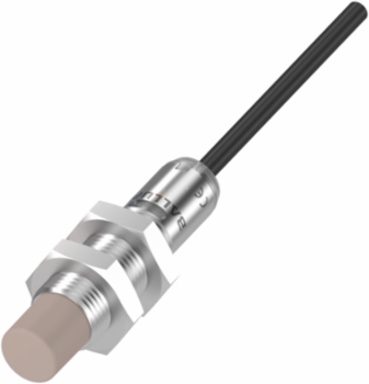

Balluff BCS M12K4G1-GSM80G-EP02 Capacitive level sensors with media contact BCS M12K4G1-GSM80G-EP02
Balluff BCS M12K4G1-GSM80G-EP02 Capacitive level sensors with media contact BCS M12K4G1-GSM80G-EP02
- MPN: BCS M12K4G1-GSM80G-EP02
- PPN: BAL-BCS0177
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$396.18/ EA
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Specifications
Specifications
- Dimension
- Ø 12 x 50 mm
- Thread (A)
- M12x1
- Connection
- Cable, 2.00 m, PUR
- Switching frequency
- 100 Hz
- Sensitivity
- Switching distance teachable
- Material sensing surface
- PEEK
- Operating voltage Ub
- 12-30 VDC
- IP rating
- IP67
SeriesM12
Installationnon-flush
Switching outputPNP/NPN/push-pull NO/NC
Range0.5-8 mm
Housing materialStainless steel (1.4404)
Ambient temperature-10-80 °C
Approval/ConformityCE, cULus, EAC, WEEE
