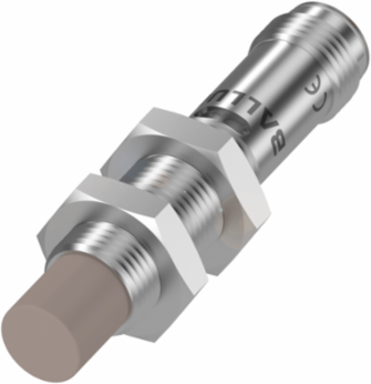

Balluff BCS M12K4D2-GOM80G-S04G Capacitive Level Sensor 12-30 VDC, IP67, Ø 12 x 60 mm
- MPN: BCS M12K4D2-GOM80G-S04G
- PPN: BAL-BCS017A
CAD
$392.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 12-30 VDC
- Rated Operating Current
- 100 mA
- Load Capacitance Max
- 220 nF
- Switching Frequency
- 100 Hz
- Rated Operating Distance
- 8 mm
- Repeat Accuracy Max
- 2 %
- Switching Output
- PNP/NPN/push-pull NC/NO
- Storage Temperature Range
- -25...80 °C
- Thread Size
- M12x1
- Installation
- non-flush
- Material Sensing Surface
- PEEK
- Tightening Torque
- 8 Nm
- Basic Standard
- IEC 60947-5-2
- Series
- M12
Rated Operating Voltage24 V DC
No-load Current Max15 mA
Voltage Drop Static Max2 V
Measured Range0.5-8 mm
Hysteresis Max15 %
Temperature Drift Max20 %
Ambient Temperature Range-10-80 °C
DimensionØ 12 x 60 mm
ConnectionConnector, M12x1-Male, 4-pin
Material HousingStainless steel (1.4404)
Material CoverPA 12
Approval/ConformityCE, cULus, EAC, WEEE
MTTF (40 °C)96.6 a
