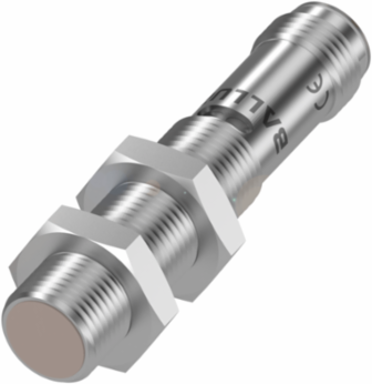

Balluff BCS M12K4D2-GSM50C-S04G Capacitive Level Sensor, 12 x 60 mm, IP67, PEEK Surface
- MPN: BCS M12K4D2-GSM50C-S04G
- PPN: BAL-BCS017K
CAD
$382.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected through glass and plastic walls with their active surface and without contact.
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 12-30 VDC |
|---|---|
| Switching Frequency | 100 Hz |
| Connection | M12x1 Male, 4-pin |
| Material | PEEK (sensing surface), Stainless Steel (1.4404) (housing) |
| Ambient Temperature | -10 to 80 C |
| Series | M12 |
| Switching Output | PNP/NPN/push-pull NO/NC |
|---|---|
| Dimension | 12 x 60 mm |
| Installation | Flush mounting |
| IP Rating | IP67 |
| Approval/Conformity | CE, cULus, EAC, WEEE |
| Sensitivity | Switching distance teachable |
