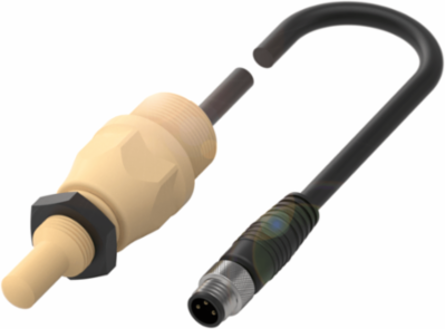

Balluff BCS S44KK01-NOCFAG-EP00,3-GS49 Capacitive Level Sensor, 12 x 62.5 mm, IP67, -5-105 C
- MPN: BCS S44KK01-NOCFAG-EP00,3-GS49
- PPN: BAL-BCS0108
CAD
$358.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Function | Smart Level 15 |
|---|---|
| Switching output | NPN normally closed (NC) |
| Thread size | M12x1 |
| Ambient temperature range | -5 to 105 C |
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR |
| Material sensing surface | PEEK |
| Material cover | PA |
| Sensitivity | media-dependent, adjustable |
| Series | S44 |
| Switching frequency | 5 Hz |
|---|---|
| Operating voltage | 10-30 VDC |
| Dimension | 12 x 62.5 mm |
| IP rating | IP67, sensing surface: IP68 10 bar |
| Housing material | PEEK |
| Material jacket | PUR |
| Additional features | Electrically conductive media, foam and residue compensation |
| Approval/Conformity | CE, WEEE |
