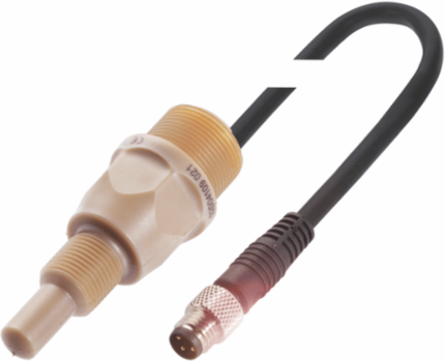

Balluff BCS S44KK02-POCFNG-EP00,3-GS49 Capacitive Level Sensor, 11.9 x 62.5 mm, PEEK, IP67
- MPN: BCS S44KK02-POCFNG-EP00,3-GS49
- PPN: BAL-BCS00ZT
CAD
$302.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Switching Output | PNP Normally closed (NC) |
|---|---|
| Switching Frequency | 10 Hz |
| Dimension | 11.9 x 62.5 mm |
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR |
| Housing Material | PEEK |
| Sensitivity | media-dependent, adjustable |
| Compliance | CE, WEEE |
| Operating Voltage | 10-30 VDC |
|---|---|
| Ambient Temperature Range | -5 to 105 C |
| Thread Size | G 1/4" |
| Installation | non-flush |
| Material Sensing Surface | PEEK |
| IP Rating | IP67 |
| Series | S44 |
