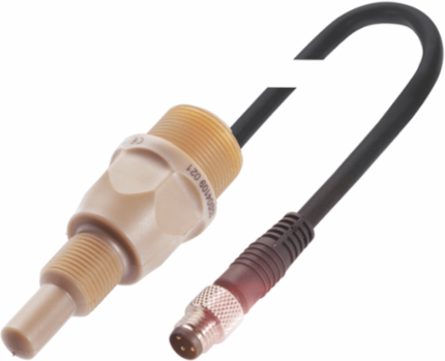

Balluff BCS S44KK02-PSCFAG-EP00,3-GS49 Capacitive Level Sensor Ø 11.9 x 62.5 mm, IP67, PEEK Housing
- MPN: BCS S44KK02-PSCFAG-EP00,3-GS49
- PPN: BAL-BCS0109
CAD
$358.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
- Switching output
- PNP Normally open (NO)
- Operating voltage
- 10-30 VDC
- Thread size
- G 1/4"
- Material sensing surface
- PEEK
- Approval/Conformity
- CE, WEEE
- Connection
- Cable with connector, M8x1 Male, 3-pin, 0.30 m, PUR
- Installation
- non-flush
- Additional features
- Electrically conductive media, foam and residue compensation
Switching frequency5 Hz
DimensionØ 11.9 x 62.5 mm
Housing materialPEEK
IP ratingIP67
Ambient temperature range-5 to 105 °C
SeriesS44
FunctionSmart Level 15
Sensitivitymedia-dependent, adjustable
