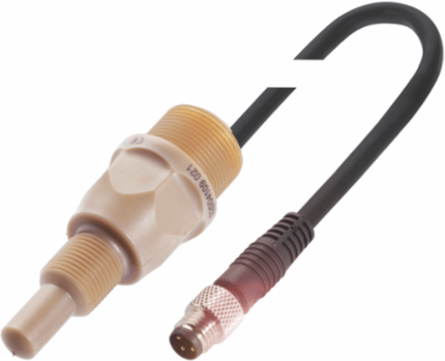

Balluff BCS S44KK02-POCFAG-EP00,3-GS49 Capacitive Level Sensor, Ø 11.9 x 62.5 mm, IP67, PEEK
- MPN: BCS S44KK02-POCFAG-EP00,3-GS49
- PPN: BAL-BCS010A
CAD
$358.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
- Switching output
- PNP Normally closed (NC)
- Ambient temperature
- -5-105 °C
- Dimension
- Ø 11.9 x 62.5 mm
- Connection
- Cable with connector, M8x1 Male, 3-pin, 0.30 m, PUR
- Material sensing surface
- PEEK
- Sensitivity
- media-dependent, adjustable
- Rated insulation voltage
- 75 V DC
- Load capacitance max
- 10 µF
- Tightening torque
- 1.5 Nm
- MTTF (40 °C)
- 135 a
- Additional features
- Electrically conductive media, Foam and residue compensation
- Series
- S44
Operating voltage Ub10-30 VDC
Switching frequency5 Hz
Thread (A)G 1/4"
Housing materialPEEK
IP ratingIP67, sensing surface IP68 10 bar
Installationnon-flush
Rated operating current50 mA
Voltage drop static max2 V
Storage temperature-25-80 °C
FunctionSmart Level 15
Approval/ConformityCE, WEEE
