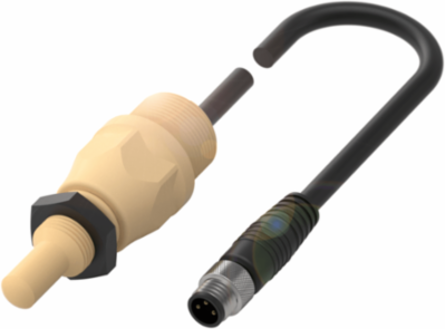

Balluff BCS S44KK01-PSCFNG-EP00,3-GS49 Capacitive level sensors with media contact BCS S44KK01-PSCFNG-EP00,3-GS49
Balluff BCS S44KK01-PSCFNG-EP00,3-GS49 Capacitive level sensors with media contact BCS S44KK01-PSCFNG-EP00,3-GS49
- MPN: BCS S44KK01-PSCFNG-EP00,3-GS49
- PPN: BAL-BCS00ZL
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$302.52/ EA
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Specifications
Specifications
- Dimension
- Ø 12 x 62.5 mm
- Thread (A)
- M12x1
- Connection
- Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR
- Switching frequency
- 10 Hz
- Housing material
- PEEK
- Ambient temperature
- -5-105 °C
- Approval/Conformity
- CE, WEEE
SeriesS44
Installationnon-flush
Switching outputPNP Normally open (NO)
Sensitivitymedia-dependent, adjustable
Material sensing surfacePEEK
Operating voltage Ub10-30 VDC
IP ratingIP67
