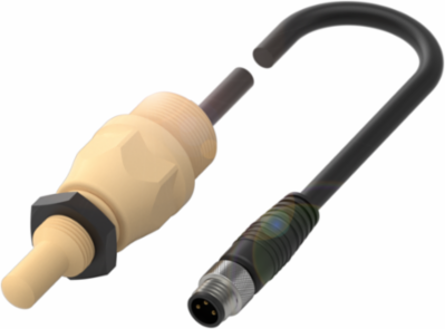

Balluff BCS S44KK01-PSCFAG-EP00,3-GS49 Capacitive Level Sensor Ø 12 x 62.5 mm, PEEK, IP67
Balluff BCS S44KK01-PSCFAG-EP00,3-GS49 Capacitive Level Sensor Ø 12 x 62.5 mm, PEEK, IP67
- MPN: BCS S44KK01-PSCFAG-EP00,3-GS49
- PPN: BAL-BCS0105
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$358.64/ EA
Description
The Balluff capacitive level sensor is a robust and reliable solution designed for precise level measurement in various applications. With a compact dimension of Ø 12 x 62.5 mm and a durable PEEK housing, this sensor is rated IP67, ensuring protection against dust and water ingress, making it suitable for demanding environments. Operating within a voltage range of 10 to 30 VDC, it features a smart level function with adjustable sensitivity tailored to different media, along with a switching frequency of 5 Hz. This sensor is equipped with a PNP normally open output and is designed for non-flush installation, making it an excellent choice for applications requiring accurate level detection in electrically conductive media, with compensation for foam and residue.
Specifications
Specifications
- Country of Origin
- Germany
- Series
- S44
- Installation
- non-flush
- Switching output
- PNP Normally open (NO)
- Sensitivity
- media-dependent, adjustable
- Additional features
- Electrically conductive media; Foam and residue compensation
- Material sensing surface
- PEEK
- Operating voltage Ub
- 10...30 VDC
- IP rating per IEC 60529
- IP67
DimensionØ 12 x 62.5 mm
Thread (A)M12x1
ConnectionCable with connector, M8x1-Male, 3-pin, 0.30 m, PUR
Switching frequency5 Hz
FunctionSmart Level 15
Housing materialPEEK
Ambient temperature-5...105 °C, UL approval valid up to 85 °C
Approval/ConformityCE; UKCA; WEEE; cULus
