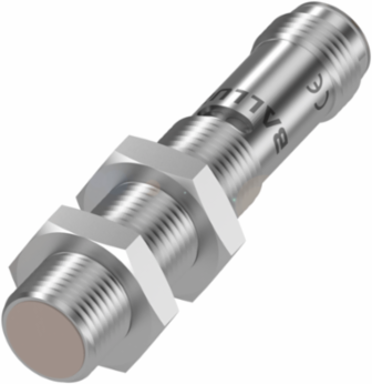

Balluff BCS M12K4D2-PIM50C-S04G 50C Capacitive Sensor 12 x 60 mm, IP67, Teach Sensitivity, 0.5-5 mm Range
- MPN: BCS M12K4D2-PIM50C-S04G
- PPN: BAL-BCS017M
CAD
$382.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Switching Distance | 5 mm |
|---|---|
| Switching Frequency | 100 Hz |
| Ambient Temperature | -10 to 80 0C |
| Dimension | d8 12 x 60 mm |
| Connection | Connector, M12x1-Male, 4-pin |
| Material Sensing Surface | PEEK |
| Approval/Conformity | cULus, CE, IO-Link, EAC, WEEE |
| Installation | for flush mounting |
| Range | 0.5-5 mm |
|---|---|
| Operating Voltage | 18-30 VDC |
| Switching Output | PNP Normally open (NO) |
| Thread Size | M12x1 |
| Housing Material | Stainless steel (1.4404) |
| IP Rating | IP67 |
| Interface | IO-Link 1.1 |
| Series | M12 |
