Balluff

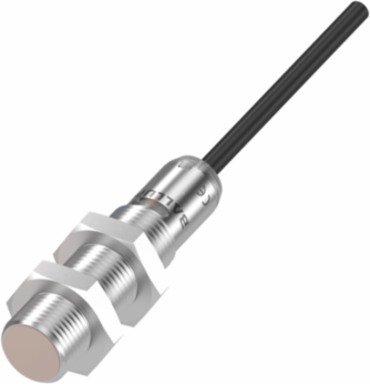

Balluff BCS M12K4G1-GSM50C-EP02 Capacitive Level Sensor, Ø 12 x 50 mm, PNP/NPN, IP67

Capacitive Level Sensor, Ø 12 x 50 mm, PNP/NPN, IP67
  • MPN: BCS M12K4G1-GSM50C-EP02
  • PPN: BAL-BCS017H

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$374.98/ EA

Description

These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected through glass and plastic walls with their active surface and without contact.

Specifications

Specifications

Dimension
Ø 12 x 50 mm
Installation
for flush mounting
Switching output
PNP/NPN/push-pull NO/NC
Sensitivity
Switching distance teachable
Material sensing surface
PEEK
Operating voltage Ub
12-30 VDC
IP rating
IP67
SeriesM12
ConnectionCable, 2 m, PUR
Switching frequency100 Hz
Housing materialStainless steel (1.4404)
Ambient temperature-10-80 °C
Approval/ConformityCE, cULus, EAC, WEEE
