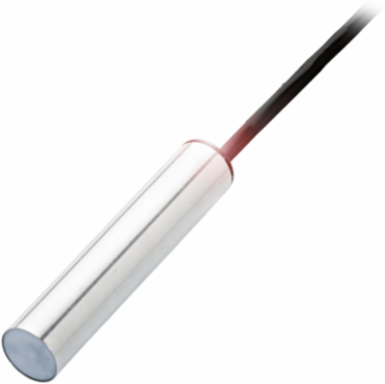

Balluff BCS G10T4H-NOM40C-EP02 Capacitive Sensor 10 mm x 50 mm, IP65, 1-4 mm Range
- MPN: BCS G10T4H-NOM40C-EP02
- PPN: BAL-BCS002Y
CAD
$376.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
- Range
- 1-4 mm
- Operating voltage
- 12-35 VDC
- No-load current
- 15 mA
- Rated insulation voltage
- 75 V DC
- Repeat accuracy
- 2 % of Sr
- Dimension
- Ø 10 x 50 mm
- Connection
- Cable, 2.00 m, PUR
- Material sensing surface
- PTFE
- Jacket material
- PUR
- Short-circuit protection
- yes
- Approval/Conformity
- CE, cULus, WEEE
- Ambient temperature range
- -30 to 70 °C
- Mean time to failure (MTTF)
- 450 years
- Switching output
- NPN Normally closed (NC)
- Conductor cross-section
- 0.14 mm²
Switching frequency100 Hz
Rated operating current200 mA
Voltage dropmax. 0.8 V
Hysteresis15 % of Sr
Temperature drift20 % of Sr
Installationfor flush mounting
Housing materialStainless steel (1.4301)
Cover materialPOM
Polarity reversal protectionyes
IP ratingIP65
Basic standardIEC 60947-5-2
Contamination scale1
SensitivitySwitching distance adjustable
Number of conductors3
SeriesG10
