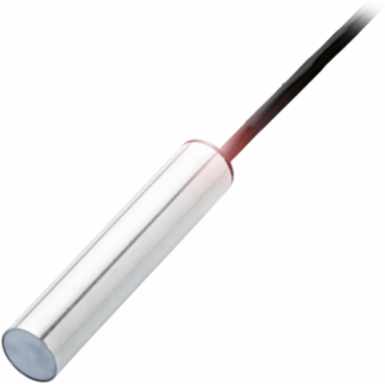

Balluff BCS G10T4H-PSM40C-EP02 Capacitive Sensor for Object Detection, 10 x 50 mm, IP65, 1-4 mm Range
- MPN: BCS G10T4H-PSM40C-EP02
- PPN: BAL-BCS002T
CAD
$376.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Switching Output | PNP Normally open (NO) |
|---|---|
| Switching Frequency | 100 Hz |
| Range | 1-4 mm |
| Dimension | 10 x 50 mm |
| Material Sensing Surface | PTFE |
| Approval/Conformity | CE, cULus, WEEE |
| Sensitivity | Switching distance adjustable |
| IP Rating | IP65 |
|---|---|
| Operating Voltage | 12-35 VDC |
| Ambient Temperature | -30 to 70 0C |
| Housing Material | Stainless steel (1.4301) |
| Connection | Cable, 2.00 m, PUR |
| Series | G10 |
| Installation | Flush mounting |
