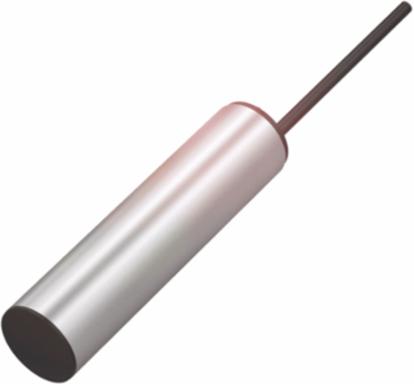

Balluff BCS G20L4Q-PAC10C-EV03-D03 Capacitive Sensor Ø 20 x 81 mm, IP65, -25-70 °C, 10-30 VDC
- MPN: BCS G20L4Q-PAC10C-EV03-D03
- PPN: BAL-BCS00W7
CAD
$584.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
We sell specific capacitive sensors for high technical demands as well as high temperatures and pressure. As capacitive adhesive sensors, they adapt to the surface to be fixed in a particularly simple and flexible manner. Their stainless steel and Teflon housing makes them ideal for use in harsh environments. They feature a wide range of operating voltages and are available in particularly small configurations.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- Range
- 1.5-10 mm
- Rated Operating Current
- 100 mA
- Rated Operating Distance
- 10 mm
- Repeat Accuracy Max
- 5 % of Sr
- Ambient Temperature
- -25 to 70 6C
- Cable Diameter
- 5 mm
- Housing Material
- Stainless steel (1.4301)
- Conductor Cross-Section
- 0.34 mmb2
- IP Rating
- IP65
- Short-Circuit Protection
- Yes
- Approval/Conformity
- CE, WEEE
- Series
- G20
- Sensitivity
- Switching distance adjustable
Switching Frequency100 Hz
Switching OutputPNP NO/NC
Voltage Drop Static Max1.5 V
Hysteresis Max15 % of Sr
Temperature Drift Max20 % of Sr [-20 to 50 6C]
Sized8 20 x 81 mm
Cable Length3 m
Material Sensing SurfaceLCP
Number of Conductors4
Polarity Reversal ProtectionYes
Protection Against Device Mix-UpsYes
Basic StandardIEC 60947-5-2
Installationfor flush mounting
