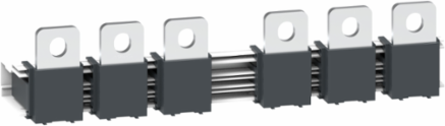

Schneider Electric LA9G3751 TeSys Giga Change-over Connection Bar, 3 Poles, 500 A, 298 mm Depth
Schneider Electric LA9G3751 TeSys Giga Change-over Connection Bar, 3 Poles, 500 A, 298 mm Depth
- MPN: LA9G3751
- PPN: SCH-LA9G3751
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$970.85/ EA
Description
These accessories are change-over bars for TeSys Giga 265-500 contactor. It is used to 3 Poles electrical circuit. These terminal extensions can be attached to the standard terminals. The rated current is up to 500 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Specifications
Environment
- Ambient Air Temperature For Operation
- -40-60 °C
- Product Certifications
- ABS || BV || CB || CCC || CCS || cUL || CE || DNV-GL || EAC || KC || LROS (Lloyds register of shipping) || RCM || RINA || RMRoS
- Ip Degree Of Protection
- IP20 IEC 60529
StandardsEN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || GB/T 14048.4
Ambient Air Temperature For Storage-60-80 °C
Operating Altitude3000 m without derating || 5000 m with derating factor
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2105013
- Pvc Free
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2105013
Halogen Content PerformanceHalogen free plastic parts product
Complementary
- Height
- 65 mm
- Net Weight
- 0.8 kg
- Width
- 74 mm
- Product Compatibility
- LC1G265...500 || LC1G300...475
Range CompatibilityTeSys Giga
Poles Description3P
Depth298 mm
Specifications
- Accessory / Separate Part Category
- connection accessory
- Range
- TeSys
- Electrical Circuit Type
- changeover
Product Or Component Typeset of connections
Quantity Per Setset of 1
Device Short NameLA9G
