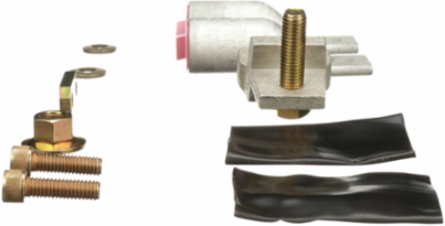

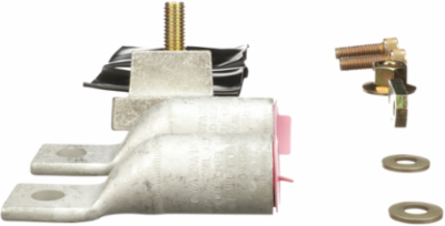

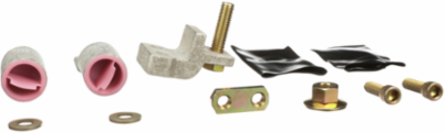

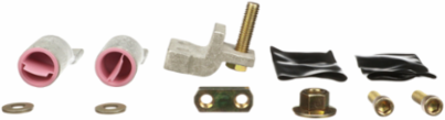

Square D YA800P7 PowerPacT M/P 800A Mechanical Lug Kit with Aluminium Connectors

MPN: YA800P7
UPC: 785901682882
PPN: SCH-YA800P7

$1302.57

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Square D PowerPact family is industry leading innovation and protection for heavy duty commercial and industrial appliacations Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. This compression lug kit is designed to be used with unit mount or I-Line PowerPact M-frame, P-frame 3 pole circuit breakers with Electronic trip units and NS630b–NS1200 circuit breakers This lugs have rating as 800A for aluminium and needed 2 of each per terminal. Terminal wire range for this accessory is 2 wires of 750 kcmil - 500 kcmil aluminium or 500 kcmil copper. Connector accessory is coming as 2 lugs per kit and has dimensions as 4.3inches Height.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Complementary Attributes

Line Rated Current	800-800 A

Important Information Attributes

Persona Type Ids	LC, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Location Of Connection	downstream, upstream
Range Of Product	PowerPact M, PowerPact P
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Traceability	No
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 2
Sustainable Packaging	No
Accessory / Separate Part Category	connection accessory
Package Weight(Lbs)	929.864 g
Warranty (In Months)	18

Persona Type Names	Contractor, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Mounting Mode	unit mount, compression
Certificate Agency	CSA, UL
Local Publishable Date	2026-04-10
Stocking Flag	Y
Serviceability	No
Field Service Division	PPIBS
Weee Product Category	4
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2542
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Awg Gauge	500...750 kcmil aluminium500 kcmil copper
Material	aluminium
Product Or Component Type	compression lug
Returnability	Yes
Tightening Torque	28-28 N.m 240-400 mm² (500...750 kcmil)
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536904000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes

Take Back	No
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
