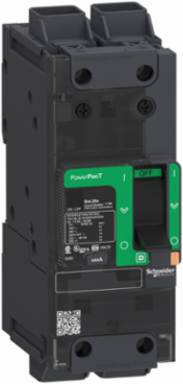

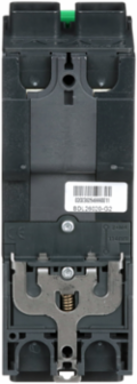

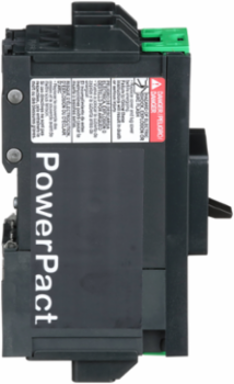

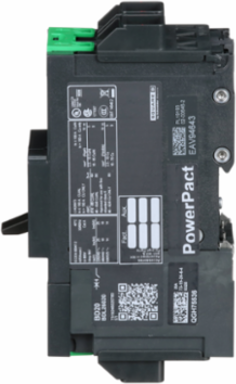

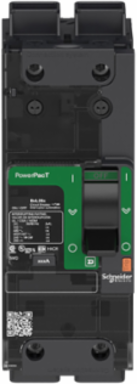

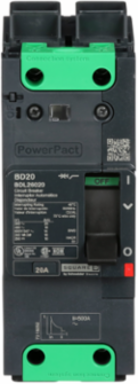

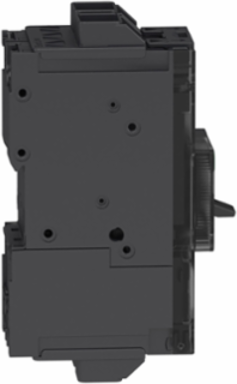

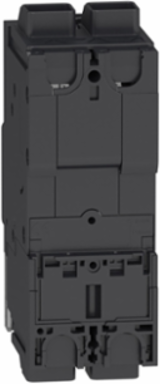

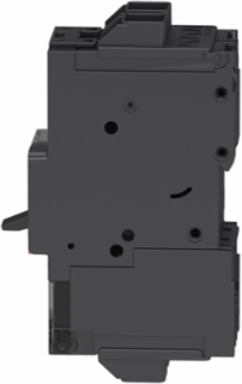

Schneider Electric BDL26020 PowerPact B Circuit Breaker 20A 2-Pole 600Y/347VAC Thermal Magnetic
- MPN: BDL26020
- PPN: SCH-BDL26020
CAD
$1530.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
PowerPact B-frame circuit breaker, offers proven performance, flexibility, and reliability. This PowerPact Molded Case Circuit Breaker feature new innovations such as the patented EverLink™ connections. PowerPact B-frame circuit breakers provides economical thermal magnetic circuit protection with a breaking capacity of 25kA at 220 / 240 VAC50/60 Hz. PowerPact B-frame circuit breakers come in 1 to 4-pole unit mount construction also 1 to 3-pole I-Line construction. This PowerPact B, 20A, 2P, circuit breaker has a breaking capacity of 14kA@600Y/347VAC@50/60 Hz per UL 489 standards. This circuit breaker has a thermal-magnetic trip unit technology with a mechanical service life of 20000 cycles and an electrical service life of 10000 cycles@440V. This clip-on breaker has a presence of auxiliary contacts green signaling function. The I-Line lug can accept an AWG gauge AWG 6 / AWG 2/0, aluminium/copper. This breakers complies to UL, IEC, CCC, EAC, CSA, NOM standards. Powerpact B-Frame breakers have an operating altitude test condition of 2000 m without derating and a 5000 m with derating. Dimensions for this product are 137 mm (H),54 mm (W),80 mm (D) and a weight of 0.769kg. This breaker has a continuous current rating of 80%.
Features
- Featuring Schneider’s innovative EverLink termination technology, this breaker actively combats the effects of cable creep and thermal cycling. By maintaining constant pressure on the conductor without stripping the strands, it eliminates the need for periodic manual terminal re-torqueing, reducing maintenance overhead and preventing localized overheating and arcing.
- Designed as a highly adaptable dual-rated component, this breaker safely manages distribution lines up to 600Y/347V AC and up to 250V DC. This dual-medium capability allows plant engineers to standardize a single part number across the facility, managing standard commercial machinery as well as industrial battery banks and solar infrastructure.
- Built to adapt to fluid on-the-job requirements, this unit-mount breaker supports traditional back-pan screw mounting as well as direct clipping onto a standard 35 mm symmetrical DIN rail. This versatile mechanism eliminates mounting adaptation bottlenecks, letting field technicians pivot instantly during facility retrofits or custom control panel builds
- Engineered with an advanced dual-break contact architecture, the breaker dramatically limits peak fault current by breaking the internal arc at two distinct points simultaneously during a short circuit. Operating at an 18 kAIC interrupting rating at 480V, this high-speed clearing capability protects delicate downstream electronics, safeguards maintenance personnel, and significantly extends the service life of your electrical infrastructure.
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
- Device Short Name
- BD 020
Product NamePowerPact B
Device Applicationdistribution
Complementary
- Mounting Mode
- clip-on 35 x 15 mm symmetrical DIN rail) || by screws plate)
- [Ics] Rated Service Breaking Capacity
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
- Height
- 137 mm
- [Ue] Rated Operational Voltage
- 525 V AC 50/60 Hz UL 489
- Breaking Capacity Code
- D
- Local Signalling
- presence of auxiliary contacts flag green)
- Electrical Connection
- Everlink lug, line || Everlink lug, load
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Circuit Breaker Application
- HACR rated
- [In] Rated Current
- 20-20 A
- Continuous Current Rating
- 80 %
- [Ui] Rated Insulation Voltage
- 800 V IEC 60947-2
- Suitability For Isolation
- yes IEC 60947-2
- Poles Description
- 2P
- Awg Gauge
- AWG 6...AWG 2/0 fine stranded aluminum/copper || AWG 14...AWG 3/0 rigid or stranded aluminum/copper
- Width
- 54 mm
Network Frequency50/60 Hz
Trip Unit Technologythermal-magnetic
Connection Pitch27 mm
Tightening Torque5-5 N.m 2.5-16 mm² AWG 14...AWG 4) || 9-9 N.m 25-95 mm² AWG 3...AWG 3/0)
9 Mm Pitches6
Number Of Slots1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
Net Weight0.769 kg
Control Typetoggle
Wire Stripping Length20 mm
Utilisation Categorycategory A
Breaking Capacity25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600Y/347 V AC 50/60 Hz UL 489 || 10 kA 250 V DC UL 489
Mechanical Durability20000 cycles IEC 947-1 Annex K ed 5.2
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Quantity Per Setset of 1
Colourgrey RAL 7016)
Depth80 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1610005EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Ik Degree Of Protection
- IK07 conforming to IEC 62262
- Standards
- NEMA AB1 || NMX J-266 || GB 14048.2 || CSA C22.2 No 5 || EN/IEC 60947-5-1 || UL 489 || EN/IEC 60947-2
- Ip Degree Of Protection
- front cover IP40 IEC 60529
- Ambient Air Temperature For Storage
- -50-85 °C
- Operating Altitude
- < 2000 m without derating || 5000 m with derating
Ambient Air Temperature For Operation-25-70 °C
Product CertificationsUL || IEC || CCC || EAC || CSA || NOM
Pollution Degree3 IEC 60947-1
Quality LabelsCE
