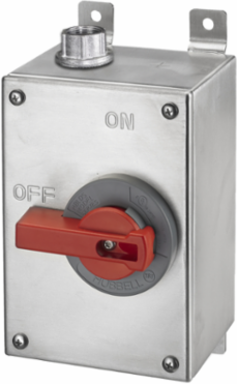

Hubbell Wiring Device-Kellems HBLDS3SSVFD Industrial VFD Drive Disconnect Switch, 30A 600V AC, NEMA 4X
- MPN: HBLDS3SSVFD
- UPC: 783585242750
- PPN: HBL-HBLDS3SSVFD
- UNSPSC: 39122205
CAD
$1382.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Motor Controls, Industrial Grade, VFD Drive, Disconnect Switches, Unfused Switch, Three Pole, 30A 600V AC, Screw Terminals, Stainless Steel, NEMA 4X Enclosure
Features
- Formed in nonporous 304 stainless steel
- IP69k and Type 4X,12K water ingress protection
- Certified by NSF for hygiene in food processing applications
- Highly visible red handle which meets OSHA Lockout/Tagout capabilities
- Accepts up to 2 Auxiliary contacts
Specifications
Key Specifications
- Country of Origin
- Poland
- Dimensions
- 8.38 in x 4.87 in x 5.39 in
- Industry Standard(s)
- UL Listed
- Length
- 8.38 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage;Electrical - Dielectric Voltage - Withstands 3000V AC minimum;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max Continuous 75°C,Min Continuous -40°C w/o impact;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - Stainless Steel - Feet are fixed;Mechanical - Product Identification - Identification and ratings are part of external label;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
- Amperage Rating
- 30 A
- Enclosure
- Type 4X, IP69k
- Size
- 8.38 in x 4.87 in x 5.39 in
- Type
- Disconnect Switches
- Engineering Drawing 1 Display Text
- HBLDS3SSVFD AutoCAD Drawing
- General Literature Asset 2 Display Text
- Safety Product Guide
- Dielectric Strength
- Withstands 3000V AC minimum
- Phase
- Three Phase
- Style
- Heavy Duty
- Description - Invoice
- DISCONNECT, 30A UNFUSED, 4X, SS, W/AC2
- Harmonization Code
- 8536509065
- MSDS Flag
- No
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.350 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Each - Pack Description
- Each
Current / Amperage Rating30 A
Height5.39 in
Ingress ProtectionIP69K
Mounting MethodFeet are fixed
Standards - RoHS Compliance StatusCM
ApplicationLabelless
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Width4.87 in
General Literature Asset 1 Display TextSafety Product Guide
General Literature Asset 3 Display TextCircuit-Lock® Motor Disconnects
Enclosure TypeType 4X, IP69k
ShapeSquare Top
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A260
SeriesNon-Fused
BOX SIZE8.500x10.100x9.600 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585242750
Case Weight5.350 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
