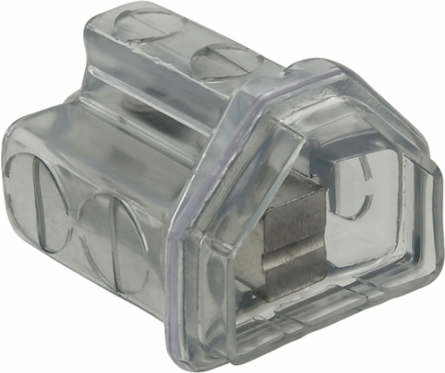

ILSCO PCT-2-4 Cleartap Insulated Aluminum Multi-Tap Connector, 2 Ports, Conductor Range 4-14, 600 V
- MPN: PCT-2-4
- UPC: 783669700305
- PPN: ILC-PCT-2-4
- UNSPSC: 39121408
CAD
$19.55
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Cleartap Insulated Multi-Tap Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 4 Str - 14 Str and 10 Sol - 14 Sol, Contains DE-OX®, 2 conductors, 2 ports/wireways, Plastisol insulation, Drive Type Main Slotted, rated for 600 V, primary color Clear, 1 poles,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366970030
- Dual Rated
- TRUE
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Primary, run, main, line)
- 4 Str - 14 Str
- Conductor Size AL (Primary, run, main, line)
- 10 Sol,12 Sol,14 Sol,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Torque
- 10 - 18 AWG = 20,8 AWG = 25,4 - 6 AWG = 35,2 AWG = 40
- Length (mm)
- 34.7472
- Width (mm)
- 42.7736
- Weight (LB)
- 0.212
- Max Insulation OD (mm)
- 8.636
- Conductor Material
- Copper,Aluminum
- Insulation
- Plastisol
- Wire Binding Hardware Finish
- Gold Zinc Chromate
- Environmental Conditions
- Cold temperature rated to -45⁰C
- Temperature Rating
- 90°C
- CSA File Number
- LR-29601
- UL Control Number
- 453G
- UL / CULUS Specification
- UL 486A/B Listed
- Connection
- Mechanical
- Contains DE-OX
- TRUE
- Number of Poles
- 1
- Number of Ports Main
- 2
- Connector Amperage Rating CU (Derated where applicable)
- 95 Amps
- Upsell
- PBTD-2-4-F
UNSPSC Code39121408
Conductor Range CU Stranded (Primary, run, main, line)4 Str - 14 Str
Conductor Size CU (Primary, run, main, line)10 Sol,12 Sol,14 Sol,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Drive Type MainSlotted
Wire Binding Screw Size4-Jan
Length (IN)1.368
Width (IN)1.684
Height (IN)1.538
Max Insulation OD (IN)0.34
MaterialAluminum
Connector FinishTin
Wire Binding Hardware MaterialSteel
ColorClear
Flammability RatingInsulation rated per UL 94
Voltage Rating600 V
CSA StandardC22.2 No. 65-03
UL File NumberE6207
Prop65 ComplianceWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Conductor TypeSolid,Stranded
Number of Conductors2
Number of Ports / Wireways2
Number of Usable Ports2
Bag Quantity1
