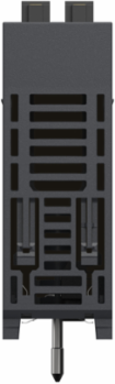

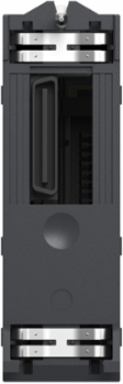

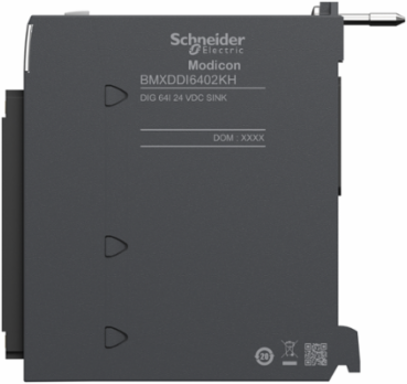

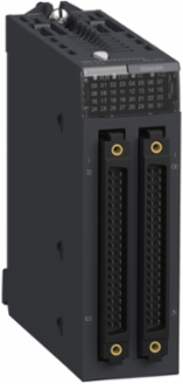

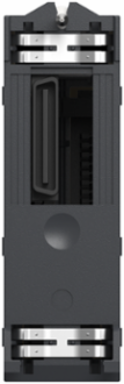

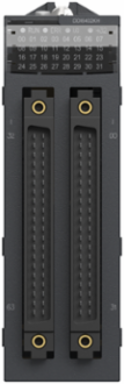

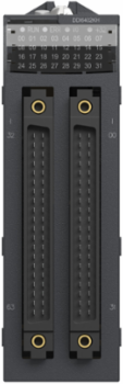

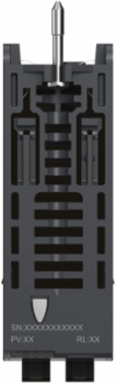

Schneider Electric BMXDDI6402KH Modicon X80 Discrete Input Module, 64 Inputs, 24V DC, IP20

MPN: BMXDDI6402KH
PPN: SCH-BMXDDI6402KH

$1802.06

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric BMXDDI6402KH Modicon X80 Discrete Input Module is engineered to enhance automation systems with its impressive capacity for 64 discrete inputs, operating at 24V DC. Designed for reliability and efficiency, this module supports robust industrial applications while offering IP20 protection for hazardous environments. Seamlessly integrating into your existing system, it provides precise and timely input handling, making it an indispensable component for modern control systems.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil

Depth	86 mm

Complementary Attributes

Dc Maximum Filtering Time	7 ms

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Dielectric Strength	1500 V AC 50/60 Hz 1 minute, primary/secondary, 500 V DC 1 minute, between group of channels
Insulation Resistance	> 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
Marking	CE, UKCA, cULus, RCM, EAC
Certificate Agency	ATEX zone 2, IECEx zone 2, CCC Ex zone 2 (pending), cULus HazLoc
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.3 kg CO2 eq., 0.3389150303
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	24 kg CO2 eq., 24.4040121212
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2311046EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2438
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Industrial
Current Consumption	3.3 V DC
Dc Typical Filtering Time	4 ms
Isolation Between Channels And Bus	1500 V for 1 minute
Power Dissipation In W	4.3 W
Product Or Component Type	discrete input module
Range Of Product	Modicon X80
Sensor Power Supply	19-30 V
Sustainable Packaging	Yes
Typical Current Consumption	160 mA DC
Voltage State 1 Guaranteed	>= 15 V>= 15 V
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential In %	3
Width Nominal	32 mm
Package Weight(Lbs)	191.000 g
Warranty (In Months)	18

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristic	gas resistant class Gx, gas resistant class 3C4dust resistant class 3S4, sand resistant class 3S4salt resistant level 2mold growth resistant class 3B2, fungal spore resistant class 3B2
Local Signalling	1 LED (green) for +32 channels indicator, 1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR), 1 LED (red) for module I/O
Voltage Detection Threshold	< 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK< 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK
Carbon Footprint Of The Distribution Phase [A4]	0.0249758545, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0508592485, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	27 kg CO2 eq., 27.1406748603
Local Publishable Date	2026-06-14
Stocking Flag	N
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Dc Maximum Filtering Time	7 ms
Device Application	industrial application in severe environment
Mtbf Reliability	510000 H
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	conformal coating
Returnability	Yes
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	52 kg CO2 eq.
Voltage State 0 Guaranteed	<= 4 V<= 4 V
Pep Code	ENVPEP2311046EN
Pep Verification Date	2023-11-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Height Nominal	134.6 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Environment Attributes Main

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	-25-70 °C-25-70 °C
Environmental Disclosure	ENVPEP2311046EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2311046EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
China Rohs Regulation	X
Carbon Footprint	51.9594371149
Circularity Profile	ENVEOLI2311046EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)2000...5000 m with derating
Packaging Without Single Use Plastic	Yes
Relative Humidity	5-95 % -25-70 °C without condensation
Pep Verification Date	2023-11-01
Psr Version	PSR-0005-ed2-2016 03 29
