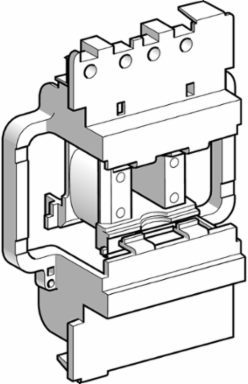

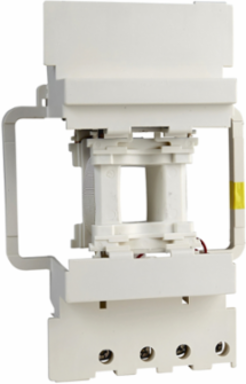

Schneider Electric LX1D8E7 Contactor coil, TeSys Deca, LX1D8, 48V AC 50/60Hz for 115 and 150A contactor
Schneider Electric LX1D8E7 Contactor coil, TeSys Deca, LX1D8, 48V AC 50/60Hz for 115 and 150A contactor
- MPN: LX1D8E7
- PPN: SCH-LX1D8E7
- UNSPSC: 39121529
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$236.94/ EA
Description
TeSys Deca replacement AC coil 48V 50/60Hz for TeSys Deca contactors. To be used with 3 and 4-pole contactors LC1 D115, D150. It operates in the voltage limits 0.8-1.15 Uc and environments until 55°C Coil with integral suppression device fitted as standard. Green Premium compliant (RoHS/REACh).
Features
- Spare coil for Deca contactor
- Safe to use in circuit protection designed with integral suppression device
- Reliable performance under high temperature up to 55°C
- Sustainability compliant
Specifications
Complementary Attributes
- Control Circuit Voltage Limits
- drop-out: 0.3...0.5 Uc at 50/60 Hz (at <55 °C), operational: 0.8...1.15 Uc at 50/60 Hz (at <55 °C)
- Maximum Operating Rate
- 1200 cyc/h 60 °C
Control Circuit TypeAC 50/60 Hz
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Hold In Power Consumption In VA
- 2-18 VA 60 Hz cos phi 0.9 (at 20 °C), 2-18 VA 50 Hz cos phi 0.9 (at 20 °C)
- Local Data Status
- Publishable
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- N
- Function Option
- Standard
- Device Short Name
- LX1D8
- Heat Dissipation
- 3-4.5 W 50/60 Hz
- Package Weight Lbs
- 296.0 g
- Product Or Component Type
- contactor coil
- Range Of Product
- TeSys Deca
- Sustainable Packaging
- Yes
- Medium Desc
- Contactor coil, TeSys Deca, LX1D8, 48V AC 50/60Hz for 115 and 150A contactor
- Product Kit Identifier
- N
- Average Resistance
- 1061 Ohm 20 °C
- Global Commercial Status
- End of commerc. announced
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Inrush Power In VA280-350 VA 60 Hz cos phi 0.9 (at 20 °C), 280-350 VA 50 Hz cos phi 0.9 (at 20 °C)
Local Publishable Date2025-12-09
TraceabilityNo
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Coil Technologywithout built-in suppressor module
Energy Efficiency OptimizedFalse
Mechanical Durability8 Mcycles
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangeTeSys
ReturnabilityNo
Uc Control Circuit Voltage248 V AC 50/60 Hz
Stocking FlagY
Pep CodeENVPEP1102005EN
Inductance Of Closed Circuit24.19 H
Uc Control Circuit Voltage548 V AC 50/60 Hz
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1102005EN
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Product CompatibilityLC1D150, LC1D115
Reach Free SHVCYes
Toxic Heavy Metal FreeYes
Ambient Air Temperature For Operation-5-60 °C
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
Pep CodeENVPEP1102005EN
General Attributes
- Product Or Component Type
- contactor coil
Range Of ProductTeSys Deca
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
