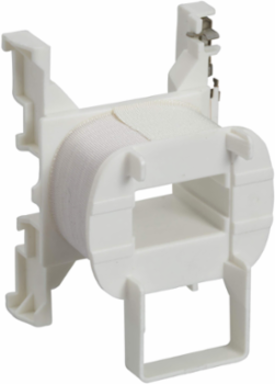

Schneider Electric LXD1B7 TeSys Deca Contactor Coil 24V AC 50/60Hz for LC1D09-D38, 0.07 kg
- MPN: LXD1B7
- PPN: SCH-LXD1B7
CAD
$117.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca replacement coil 24V AC 50/60Hz, for TeSys Deca contactors. To be used with 3 and 4-pole contactors LC1D09 to D38 and LC1DT20, DT40. This coil has an inrush consumption rating of 70 VA and a sealed consumpation rating ofd 7 VA. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C
Features
- Specifically engineered to seamlessly integrate with standard Schneider Electric TeSys D contactors (models LC1D09 through LC1D38) and CAD control relays. Opting to rebuild your equipment by replacing just the burnt-out coil instead of the entire 3-pole contactor saves significant maintenance budget and sharply reduces control panel downtime during critical motor repairs.
- Operating on a standard 24-volt alternating current at dual 50/60Hz frequencies, this magnetic coil is designed for modern, safe low-voltage automated control systems. This ensures highly responsive, chatter-free switching for your industrial motor loads while actively protecting your maintenance technicians from high-voltage arc flash hazards during routine diagnostic checks.
- Featuring a precision-molded, easily accessible architecture, this OEM replacement part allows facility electricians to rapidly rebuild contactors without removing the main body from the DIN rail. This plug-and-play functionality eliminates the frustrating need to completely un-wire and re-torque heavy power terminals, accelerating HVAC or pump repair schedules to get your production line back online instantly.
- Built with superior thermal insulation and encapsulated copper windings, this robust component is engineered to withstand the demanding ambient temperatures found inside high-density motor control centers (MCC). Relying on a genuine, factory-tested Schneider Electric replacement guarantees extended mechanical endurance, preventing premature burnout and nuisance machine stoppages.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, France, Indonesia, Mexico, Singapore
Complementary Attributes
- Control Circuit Voltage Limits
- drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
- Maximum Operating Rate
- 3600 cyc/h 60 °C
Control Circuit TypeAC 50/60 Hz
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Inrush Power In Va
- 70-70 VA 60 Hz cos phi 0.75 (at 20 °C), 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI100405EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1904
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Coil Technology
- without built-in suppressor module
- Heat Dissipation
- 2-3 W 50/60 Hz
- Mechanical Durability
- 15 Mcycles
- Product Or Component Type
- contactor coil
- Range Of Product
- TeSys Deca
- Sustainable Packaging
- Yes
- [Uc] Control Circuit Voltage
- 24 V AC 50/60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504508000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Resistance5.37 Ohm 20 °C
Device Short NameLXD1
Inductance Of Closed Circuit0.22 H
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
ReturnabilityYes
Pep CodeENVPEP0603001EN
Hold-in Power Consumption In Va7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
Package Weight(Lbs)66.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Product Compatibility
- LC1D09...D38, CAD, LC1DT20...DT40
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP0603001EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-5-60 °C, -5-60 °C
Take BackNo
Toxic Heavy Metal FreeYes
Circularity ProfileENVEOLI100405EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP0603001EN
General Attributes
- Product Or Component Type
- contactor coil
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC001043
ETIM 9EC001043
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
