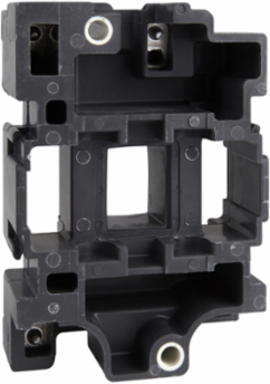

Schneider Electric LX1D6T6 TeSys Deca Contactor Coil 480 V AC 60Hz for 80/95A, 0.28 kg
- MPN: LX1D6T6
- PPN: SCH-LX1D6T6
CAD
$190.51
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The TeSys Deca Contactor Coil from Schneider Electric is engineered for efficient operation in demanding applications, providing reliable control for systems requiring 480 V AC at 60 Hz. Designed specifically for use with contactors rated at 80/95A, this compact coil delivers dependable performance, facilitating smooth operation in automation and control settings. Weighing just 0.28 kg, it is an essential component for anyone looking to enhance the reliability and functionality of their electrical systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France, United States
Complementary Attributes
- Control Circuit Voltage Limits
- drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C), operational: 0.8...1.1 Uc at 50 Hz (at <55 °C)operational: 0.85...1.1 Uc at 60 Hz (at <55 °C)
- Maximum Operating Rate
- 3600 cyc/h 60 °C
Control Circuit TypeAC 60 Hz
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1924
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Resistance
- 480 Ohm 20 °C
- Device Short Name
- LX1D6
- Heat Dissipation
- 6-10 W 50/60 Hz
- Inrush Power In Va
- 220-220 VA 60 Hz cos phi 0.75 (at 20 °C)
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- TeSys
- Returnability
- Yes
- Pep Code
- ENVPEP1102005EN
- Hold-in Power Consumption In Va
- 22-22 VA 60 Hz cos phi 0.3 (at 20 °C)
- Package Weight(Lbs)
- 308 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Publishable Date2026-06-27
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologywithout built-in suppressor module
Energy Efficiency OptimizedFalse
Inductance Of Closed Circuit23 H
Mechanical Durability10 Mcycles
Product Or Component Typecontactor coil
Range Of ProductTeSys Deca
Sustainable PackagingNo
[Uc] Control Circuit Voltage480 V AC 60 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504508000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Product Compatibility
- LC1D80, LC1D95
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1102005EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1102005EN
Ambient Air Temperature For Operation-5-60 °C, -5-60 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- contactor coil
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC001043
ETIM 9EC001043
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
